Transcriptional Regulation of Thrombospondins and Its Functional Validation through CRISPR/Cas9 Mediated Gene Editing in Corpus Luteum of Water Buffalo (Bubalus Bubalis)
Avishek Paula Jaya Bharatia Meeti Punethaa Sai Kumara Vidyalakshmi G. Mallesha
Vikrant S. Chouhana Arvind Sonwaneb Sadhan Baga Sanjeev Kumar Bhurec
Vijai Prakash Mauryaa Gyanendra Singha Kristin M. Whitworthd Mihir Sarkara
aIndian Veterinary Research Institute, Physiology & Climatology Division, Bareilly, India, bIndian Veterinary Research Institute, Division of Animal Genetics, Bareilly, India, cIndian Veterinary Research Institute, Division of Biochemistry, Bareilly, India, dUniversity of Missouri-Columbia, Division of Animal Science, Columbia, MO, USA
Key Words
Buffalo • Corpus luteum • TSP • CRISPR/Cas9 • Luteolysis
Abstract
Background/Aims: Thrombospondins (TSPs) are large multi-modular proteins, identified as natural angiogenesis inhibitors that exert their activity by binding to CD36 and CD47 receptors. The anti-angiogenic effect of TSPs in luteal regression of water buffalo has not been addressed. The present study characterized the expression pattern and localization of TSPs and their receptors in ovarian corpus luteum during different stages of development in buffalo. This study also elucidated the effect of exogenous Thrombospondin1 (TSP1) or the knocking out of the endogenous protein on luteal cell viability and function. Further, the in vitro transcriptional interaction of TSP1 with hormones, LH, PGF2α and angiogenic growth factors, VEGF and FGF2 were also evaluated. Methods: First, the CLs were classified into four groups based on macroscopic observation and progesterone concentration. mRNA expression of examined factors was measured by qPCR, localization by immunoblotting and immunohistochemistry. TSP1 was knocked out (KO) in cultured luteal cells isolated from late luteal stage CLs (day 11-16) by CRISPR/Cas9 mediated gene editing technology in order to functionally validate the TSP1 gene. Isolated cells from late stage CLs were also stimulated with different doses of TSP1, LH, PGF2α, VEGF and FGF2 for various time intervals to determine transcriptional regulation of thrombospondins. Results: mRNA expression of TSPs and their receptors were found to be significantly higher in late and regressed stage of CL as compared to other groups which was consistent with the findings of immunoblotting and immunolocalization experiments. It was observed that TSP1 induced apoptosis, down regulated angiogenic growth factors, VEGF and FGF2 and attenuated progesterone production in cultured luteal cells. However, knocking out of endogenous TSP1 with CRISPR/Cas9 system improved the viability of luteal cells, progesterone synthesis and upregulated the expression of VEGF and FGF2 in the KO luteal cells. PGF2α induced the upregulation of TSPs and Caspase 3 transcripts, whereas treatment with LH and angiogenic growth factors (VEGF and FGF2) down regulated the TSP system in luteal cells. Conclusion: Collectively, these data provide evidence that thrombospondins along with their receptors are expressed at varying levels in different stages of CL progression with maximum expression during the late and regressing stages. These results are consistent with the hypothesis that thrombospondins stimulated by PGF2α plays an essential modulatory role in bringing about structural and functional luteolysis in buffalo.
Introduction
Physiological angiogenesis in the ovary is a tightly controlled process which provides a unique opportunity to study angiogenic processes, as it is one of the few tissues in the female adult that undergoes repetitive blood vessel formation, maturation, and regression [1]. The corpus luteum (CL) is one such tissue in the ovary that exhibit regular periods of growth (angiogenesis), steroidogenic function and luteolysis (CL regression). Prolonged anestrous and inadequate progesterone production has been associated with inadequate angiogenesis in the CL resulting into poor embryo development and increased pregnancy failure in the buffalo cow [2-3].
The stringency in the process of ovarian angiogenesis is modulated by various pro and anti-angiogenic factors. Several pro-angiogenic factors are well-known; however, those that seem to be the most important in ovarian angiogenesis are FGF2, VEGF and ANG II [4-6]. On the contrary, a number of naturally occurring inhibitors of angiogenesis have been identified in mammalian tissues which have been considered to maintain quiescence of the normal vasculature. The thrombospondin family consisting of TSP1 and TSP2, are large, secreted, multimodular glycoproteins that play complex roles in mediating cellular processes. TSPs function in cell-cell and cell-matrix interactions as potent inhibitors of angiogenesis [7]. The cellular effects of the TSPs are mediated through interaction with cell-surface receptors CD36 and Integrin Associated Protein (IAP, also known as CD47) [8]. In the cow ovary, TSP and CD36 protein were co-localized in the granulosa cells of small and medium antral follicles (0.5–1 cm), with reduced expression of TSP mRNA and protein in larger follicles [9]. The same pattern of expression has also been found in primate ovary [7].
It is reasonable to assume that there may exist cross-talk between pro- and anti-angiogenic factors regulating the complex angiogenic process in ovary. Recently, several studies have focused on the different actions of PGF2α on steroidogenesis, immune function and vasoactive factors between the early CL (PGF2α resistant) and mid CL (PGF2α responsive) in domestic animals [10]. Our lab previously reported that LH plays an important role in stimulating luteal angiogenesis in buffalo CL [11]. In addition, a role for TSP1 in inhibition of VEGF levels has been demonstrated in TSP1 knockout mice, which exhibit follicular hypervascularization and reduced litter size. The loss of the inhibitory effect of TSP1 in TSP1-null mice results in increased levels of follicular VEGF [9]. TSP1 also combines with pro-angiogenic FGF2, consequently lowering its bioavailability and activity [12]. The pro-apoptotic properties of TSP1, coupled with its ability to inhibit FGF2 expression and activity, may prove to be critical for luteal regression [13]. A characterization of the interaction between TSP1, VEGF & FGF2 has not yet been documented in the buffalo ovary. We hypothesize that the TSP family could be involved in the luteolytic mechanism in buffalo.
The field of biology is presently experiencing a transformative phase with the advancement of refined genome engineering technology in animal and plants using RNA-programmable CRISPR/Cas9. This gene editing system is paving the way for understanding how these genes function and possibly harnessing them to improve health in both humans and other animals. Therefore, the present study was designed to investigate the expression and localization of TSPs and their receptors in ovarian corpus luteum during different stages of development in buffalo. The objective of this study it to determine the effects of exogenous administration of TSP1 as well as CRISPR/Cas9 mediated knocking out of the endogenous protein TSP1 on luteal cell viability and function. Subsequently, we further aim to study the transcriptional interaction of TSP1 with LH, PGF2α, VEGF and FGF2 in in vitro luteal cell culture system.
Materials and Methods
Collection of CL
Normal reproductive tracts from buffalo cows were collected from a local slaughter house within 30 mins post slaughter and were transported in ice cold conditions to the laboratory. The stage of the estrous cycle was defined by macroscopic observation of the ovaries (color, consistency, CL stage, number, and size of follicles) and the uterus (color, consistency, and mucus) as described previously [14]. Forty (40) ovaries, with CL, were distributed to following stages (n=10; in each stage): early luteal stage (days 1–4), mid luteal stage (days 5–10), late luteal stage (days 11–16), and regressed CL (days >17) of estrous cycle for RNA extraction, immunoblotting, and immunohistochemistry studies. Luteal tissues were snap frozen in liquid nitrogen and stored at -80oC until RNA and protein isolation [15].
Primers

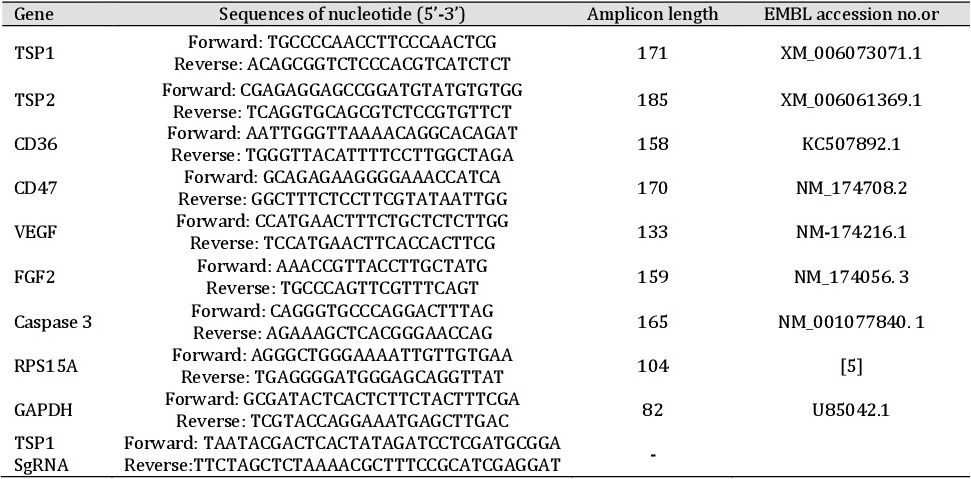

The primers for TSP1, TSP2, CD36, CD47 and Caspase 3 were designed using the DNAStar, Gene tool and Oligo Analyzer software. Previously published primers were used for FGF2, VEGF, RPS15A and GAPDH [4-5, 14]. Details of the primers used are presented in Table 1.
qPCR analysis
Total RNA was isolated from different stages of CL by QIAzol reagent (QIAGEN) according to manufacturer’s instructions. The RNA samples were treated with RNase free DNase and subsequently DNase was inactivated by heating at 56°C for 10 min and immediately chilled at 4°C. The quality of RNA was checked by A260/A280 ratio using a Nanodrop spectrophotometer. Distinct 28S and 18S RNA bands indicated extracted total RNA was intact after RNA gel electrophoresis. One (1) microgram of total RNA from different samples was reverse transcribed into cDNA using RevertAid First cDNA synthesis kit (ThermoFisher Scientific) according to manufacturer’s instruction using oligo dT primers at 42°C for 60 min. Quantitative real-time PCR was performed using Ssofast Eva Green®qPCR kit, Biorad, USA. A general qPCR protocol was followed with initial denaturation at 95°C for 30s followed by 40 cycles of denaturation at 95°C for 5s, annealing and extension at 60°C for 10s. Cycle threshold (cT) values and amplification plot for all determined factors were acquired using the “Eva green (with dissociation curve)” method of the real-time machine (Biorad CFX manager Real-Time qPCRTM software). Real time PCR efficiencies were determined by amplification of a standardized dilution series, and slopes were obtained. A negative control containing all components except template was included for each sample to rule out the formation of primer dimer and non-specific amplification.
Antibodies and Growth factor
Immunoblotting and immunohistochemistry were performed using goat polyclonal GAPDH (sc-48166; Santa Cruz Biotechnology, Inc., Dallas, TX), mouse monoclonal TSP1 (sc-393504; Santa Cruz Biotechnology, Inc., Dallas, TX), goat polyclonal TSP2 (sc-12313; Santa Cruz Biotechnology, Inc., Dallas, TX), goat polyclonal CD36 (sc-5522; Santa Cruz Biotechnology, Inc., Dallas, TX), mouse anti-goat IgG-HRP (sc-2354; Santa Cruz Biotechnology, Inc., Dallas, TX), goat anti-mouse IgG-HRP (sc-2005; Santa Cruz Biotechnology, Inc., Dallas, TX) bovine anti-goat IgG-CFL-647 (sc-362284, Lot#B0312) and goat anti-mouse IgG-CFL-647 (sc-362257; Santa Cruz Biotechnology, Inc.). Recombinant Human Thrombospondin1 (Catalog no. 3074-TH, R&D Systems), LH (bovine LH; AFP 117438-NHPP-NIDDK), Prostaglandin F2 alpha (Catalog no. 194578; MP Biomedicals), Recombinant Human VEGF (Catalog no. 293-VE, R&D Systems) and Recombinant bFGF-basic (bovine brain derived; Catalog no. 133-F13/CF, R&D System) were procured for cell culture studies.
Immunoblotting
Total proteins from the 4 assigned CL stages were obtained by triturating of the stored tissues and resuspending in RIPA lysis (Ameresco) buffer and Halt protease inhibitor cocktail (Thermo Scientific). The suspensions were centrifuged at 12, 000g at 4°C. The supernatants containing the total soluble protein were extracted and concentrations were estimated using Bradford protein assay. The protein samples were diluted in 2X Laemmli loading buffer and boiled for 5 min. One hundred (100) µg of protein sample from each group of CL were subjected to 10% SDS polyacrylamide gel electrophoresis. For western blot analysis, the protein samples from the gel were electro transferred onto polyvinylidene difluoride membrane (PVDF) and blocked with 5% bovine serum albumin (BSA) before incubation with primary antibodies. The primary antibodies were against TSP1, TSP2 and CD36 which were used at a 1:500 dilution and polyclonal GAPDH antibody at a 1:400 dilution. After incubation for overnight at 4°C, the membrane was washed with PBS-T (PBS 0.01% Tween 20). The respective secondary antibody conjugated with horseradish peroxidase was then added. After washing with PBS-T solution, the positive signals were detected by incubating the membrane in 0.06% 3, 3’-diaminobenzidine tetrahydrochloride (Genei) in 1X PBS (pH 7.4) containing 0.06% H2O2 for 10 to 15 min. The distinct bands were visualized and recorded on a digital camera.
Immunohistochemistry
The freshly collected luteal tissues were fixed with 10% neutral buffer formalin. These fixed tissues were then dehydrated through a series of graded alcohols, embedded in paraffin and serial-sectioned (5 µm). Sectioned samples were then mounted on 3-Aminopropyl triethoxysilane (Thermo Scientific) coated slides, and dried at 37°C overnight. Deparaffinization was performed in xylene followed by rehydration with a series of graded alcohols at room temperature. For epitope retrieval, the slides were treated in sodium citrate buffer (10 mM sodium citrate, pH 6.0, 0.05% Tween- 20), rinsed, and blocked with 5% BSA for 2 h at 37°C. The morphology of the CL sections was first evaluated using hematoxylin and eosin staining, following a previously reported method [4]. Subsequently, sections were probed with TSP and its receptors antibodies, at 1:200 dilutions. Primary antibodies were detected by fluorescent conjugated bovine anti-goat and goat anti-mouse IgG-CFL-647 secondary antibodies. The slides were then rinsed and nuclei of the cells in the luteal sections were stained by adding 0.4 mg/mL of 4, 6-diamidino-2- phenylindole dihydrochloride (DAPI) in PBS. The control slides were processed under similar conditions except for the addition of isotype IgG and omission of the primary antibody. The stained fluorescent sections were mounted with antifade mounting media (MP Biomedicals) and images were captured by using Axio Observer.Z1 (Carl Zeiss Micro Imaging GmbH, Germany) microscope.
Tissue collection and Luteal cell culture
In order to study the effects of the TSP1, LH, PGF2α, VEGF and FGF2 on luteal function, a luteal cell culture model was established with cells isolated from fresh CLs. Ovaries were collected in 1X PBS at 37°C in a vacuum flask from a local abattoir. In all of the experiments, only late luteal stage (days 11–16) was used which were selected based on the established criteria applied previously in buffalo [6]. The luteal cell culture was developed using the protocol established in our laboratory [14]. In brief, cells (including luteal, endothelial, pericytes, and fibroblasts) were dispersed by incubating the luteal tissue in DMEM/F12 medium (Hyclone, Thermo Scientific) containing collagenase, DNase I and BSA for 2 x45 mins in a shaker incubator at 37°C. The dispersed cells, were then filtered through 70 µm filter and after washing re-suspended in DMEM/F12 medium (HyClone; Thermo Scientific); containing 10% fetal bovine serum (FBS) (Sigma-Aldrich) and Antibiotic-Antimycotic solution. The cell viability was determined by trypan blue exclusion dye. The cells were then plated out at 1.5 x 105 viable cells per well in a 24-well plate with 1 ml culture media in a humidified CO2 (5%) incubator at 37°C. The cells were allowed to attach and grow (75%–80% confluent) for 48 h. The media was then replaced with fresh media containing different concentrations of TSP1 (50, 100, and 500 ng/ml), LH (5, 10 and 100 ng/ml media), PGF2α analog (0.1, 1 and 10 μg/ml), VEGF (1, 10 and 100 ng/ml) and FGF2 (1, 10 and 50 ng/ml media) individually and cultured for 24, 48 and 72 h. Control cells were grown in media without hormone or growth factors. After the stipulated period of time, the media was assayed for P4 concentration and the cells were collected for mRNA isolation. Each treatment was tested in triplicate wells for each experiment.
Production of Thrombospondin1 KO luteal cells
Production of Thrombospondin1 knock out (TSP1 KO) luteal cells was accomplished by CRISPR/Cas9 system mediated disruptions of the bubaline TSP1 genes. In this approach, components of CRISPR/Cas9 system (Single guide RNA and Cas9) were delivered into the luteal cells via lipofection and the details of the methodology are mentioned below:
Preparation of Synthetic Single guide RNA (SgRNA)
TSP1 gene specific guide RNA (20nt) was designed using available software. For SgRNA synthesis, the T7 promoter sequence was added to SgRNA template/forward primer and the IVT template was then generated by PCR amplification using designed primers. Briefly, SgRNA DNA template was PCR amplified using the Phusion High-Fidelity PCR Master Mix in thermocycler followed by generation of SgRNA by in vitro transcription using the TranscriptAid Enzyme Mix (Invitrogen) and later the in vitro transcribed SgRNA was purified using the GeneJET™ purification columns kit according to manufacturer’s instruction (Invitrogen). Aliquots from an IVT reaction was separated on agarose gel to assess quality. Concentration of purified SgRNA was measured by Nanodrop spectrophotometry.
Transfection and Genomic Cleavage Detection
Ready to transfect wild-type Cas9 protein (GeneArt Platinum Cas9 Nuclease) for performing CRISPR/Cas9-mediated genome editing was procured from Invitrogen.
Cultured luteal cells of 30-70% confluency were transfected with components of CRISPR/Cas9 and transfection reagent complex using Lipofectamine CRISPRMAX Transfection kit as per manufacturer’s protocol (Invitrogen). Briefly, Cas9 nuclease/SgRNA/Cas9 Plus solution was prepared in one tube and the CRISPRMAX reagent was diluted in Opti-MEM medium in another tube and incubated for 5 minutes at room temperature. After that, solutions from both tubes were mixed properly and incubated for another 5-10 mins and then the mixture was added to the wells of culture plate containing the 30-70% confluent luteal cells. Detection of TSP1 KO luteal cells was done by GeneArt Genomic Cleavage Detection Kit as per manufacturer’s instruction (Invitrogen). The cleavage efficiency of the TSP1 knock out was measured by the following equation.
Cleavage efficiency = [(sum of cleaved band intensities)/(sum of cleaved and parental band intensities )]× 100% [16].
Following the above procedure, all the Thrombospondin1 (TSP1) KO luteal cells were cultured for 72 hrs in replicates of three for each treatment group. Cells were harvested to determine mRNA expression of genes. Media was stored at -20°C until used in the P4 immunoassay.
Cell Viability Assay
The primary culture luteal cells were seeded on 96 well plates and incubated at 37°C for 72 hours with media containing different concentrations (50, 100, and 500 ng/ml) of TSP1 (50, 100, and 500 ng/ml). TSP1 knocked out luteal cells were also cultured for 72 hour at 37°C. After culture, 10 μl of 5mg/ml of 3-(4, 5-dimethylthiazole-2-yl)-2, 5-diphenyltertrazolium bromide (MTT; MP Biomedicals) was added to each well and cells were further cultured for 4 hours at 37°C. Supernatant was then aspirated and 100 μl of DMSO (MP Biomedicals) was added and absorbance at 450 nm was detected with a microplate reader (Biorad, Microplate reader).
Apoptosis Assay
The proportion of apoptotic cells was qualitatively measured by Annexin V apoptosis detection kit (BD bioscience). Both wild type and TSP1 knock out luteal cells were cultured at 37°C for 72 hours. Then, cells from both the groups were trypsinized using 0.05% Trypsin/EDTA solution and cells were harvested, treated with 5 μl of both annexin V and PI according to manufacturer’s instructions. The apoptotic signals were detected by Axio Observer.Z1 (Carl Zeiss Micro Imaging GmbH, Germany) microscope.
Hormone Assay
Concentrations of progesterone (P4) in the spent media of luteal cell culture were estimated by P4125I RIA kit (IM1188) supplied by Immunotech, Czech Republic as per manufacturer’s instructions. The intra and inter assay coefficients of variation were 7.4% and 8.7%, respectively.
Statistical Analyses
All experimental data are shown as Mean±SEM. Efficiency-corrected relative quantification of mRNA was obtained by Pfaffl’s method [17]. Statistical significance differences in mRNA expression of the examined factors across different stages of corpus luteum and the expression of protein was assessed by using the software SPSS.22 by one-way analysis of variance followed by Tukey’s honestly significant difference (HSD) test. The P4 concentration and mRNA expression in cultured luteal cells were assessed using the software SPSS.22 by two-way analysis of variance followed by Tukey’s HSD test as a multiple comparison test. Differences were considered significant at p < 0.05.
Results
Confirmation of primer specificity
The mRNA expression was analyzed by conventional real time RT-PCR. For the exact length verification, the RT-qPCR products were separated on 2% agarose gel electrophoresis and visualized under UV light (Table 1).

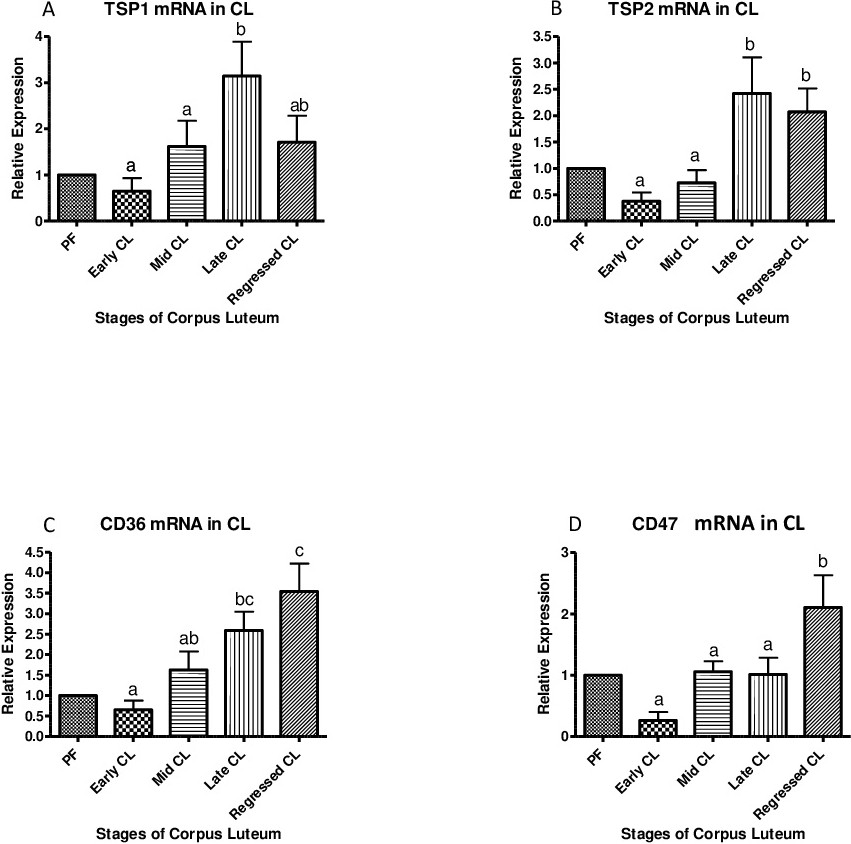

Expression analysis of TSP1, TSP2, CD36 and CD47 mRNA in the corpus luteum of water buffalo
The preovulatory follicle (PF) was used as calibrator for obtaining relative mRNA expression. Efficiencies of primers were determined by serial dilution of template cDNA sample and running in triplicate. The expression of RPS15A and GAPDH was examined in all the samples and geometric mean of Ct values of both the house keeping genes was used as Ct of reference gene. The relative change in the copy number of Thrombospondins and its receptor system during different stage of CL development in the buffalo is presented in Fig. 1. TSP1 transcripts were significantly upregulated during the late stages of CL progression as compared to other stages of CL and PF (p<0.05; Fig. 1A). However, the relative fold change of TSP2 mRNA was significantly upregulated during both late and regressed stage CL as compared to other stages (p<0.05; Fig. 1B). The mRNA expression of CD36 receptor was non-significant in the early stages and PF, however, the messages of CD36 showed significant and continuous upregulation to a maximum level in the corpora lutea during regression stage (p<0.05; Fig. 1C). In contrast, CD47 receptor showed significantly higher upregulation only in regressed stage of CL when compared to other stages and as well as PF (Fig. 1D). Taken together, the real-time PCR data indicated that late stage CL showed significantly increased expression of TSPs and CD36.
Immunoblotting Analysis
Western blot showed that both TSP1 & TSP2 as well as their receptor CD36 are present in the CL of the buffalo (Fig 2A). Semi-quantitative analyses of the blots using band densitometry revealed that the TSP1 protein expression was higher at late stage CL than the other stages (p<0.05; Fig 2B). However, TSP2 proteins showed a significant upregulation trend in late and regressed stages of CL as compared to other stages (p<0.05; Fig 2C). The CD36 receptors protein also showed the same tendency of significantly higher expression in the CL groups other than the early stages (p<0.05; Fig. 2D). Overall, the expression of the TSPs and their receptor system was confined to the late and regressed stage of CL, while the early stages showed weak expression.
Immunohistochemistry of CL
Immunohistochemistry of late stage CL (Fig. 3-5) revealed that the TSPs and their receptor were localized with intense fluorescence. The immunofluorescence of all the TSPs and their receptors was restricted to the cytoplasm. The immunofluorescent staining of TSP1 (Fig. 3A-D), TSP2 (Fig. 4A-D) and CD36 (Fig. 5A-D) in the late stages of CL was consistent by evidence of fluorescence signal.
Effects of Thrombospondin1 (TSP1) on Luteal Cell Viability and Function

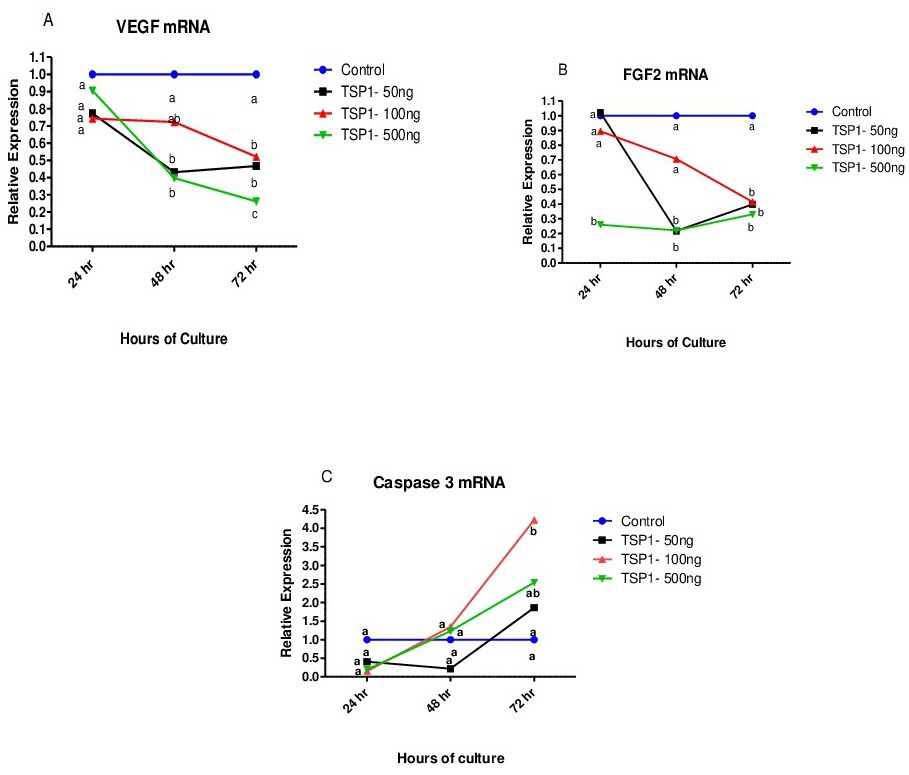

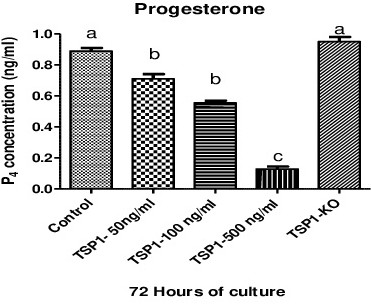

To determine the effect of TSP1 on CL, in vitro stimulation of the primary luteal cell culture derived from the late stage CL of buffalo was established. To determine whether TSP1 influences the viability of buffalo luteal cells, an MTT assay was performed to assess the dose-dependent effect of TSP1. The MTT assay revealed a significant decrease in the number of viable cells in a dose dependent manner over a period of 72 hours. Interestingly, at the 500ng/ml dose of TSP1, cell viability reached less than 50% of untreated control cells (p<0.05; Fig.6). Similarly, the transcripts of angiogenic growth factors mainly VEGF and FGF2 showed significant down regulation in a time dependent manner (p<0.05; Fig. 7A & 7B). Of the three TSP1 concentrations tested, both 500 ng/ml and 100 ng/ml down regulated the expression of VEGF and FGF2 at 72 hour culture as compared to other doses except at 24 hr of culture. However, significant upregulation of the apoptotic gene Caspase 3 was observed at the 72 hour culture with TSP1 at 500 ng/ml dose (p<0.05; Fig. 7C). A significant dose effect of TSP1 over a period of 72 h for P4 synthesis was observed and at 500 ng/ml, TSP1 showed the lowest value for progesterone (P4) which correlated with the percentage of viable luteal cells (p<0.05 ; Fig.8) and upregulation of apoptotic gene after 72 hour of culture.
Determining the effect of knocking out of the endogenous TSP1 on luteal cell viability and function
CRISPR/Cas9 mediated genomic editing technology was used to knockout the Thrombospondin1 (TSP1) gene to better understand luteal cell viability and function. The TSP1 gene specific guide RNA was designed using available software in silico (Table 1) and in vitro SgRNA was synthesized in laboratory as per manufacturer’s instruction and was transfected along with Cas9 into luteal cells @ 30-70% confluency. The confirmation of TSP1 knockout was validated by T7E1 assay using GeneArt Genomic Cleavage Detection Kit. The efficiency of TSP1 knockout was 75.4% (Fig. 9) and knocked out cells were then used for viability and mRNA expression analysis.

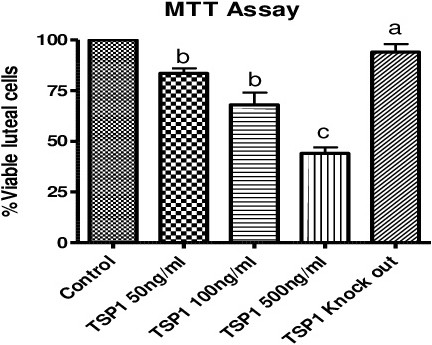

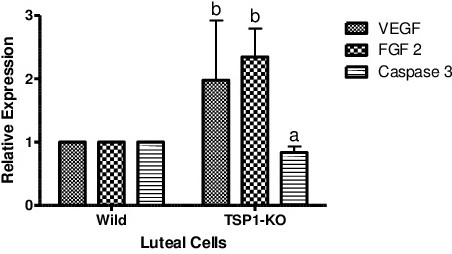

The MTT study revealed no significant difference in viability between control and TSP1 knocked out cells as there were almost 84% viable luteal cells after knocking out of the TSP1 endogenous protein (p>0.05; Fig.6). To determine whether knocking out of TSP1 reduced the viability of luteal cells or not, we performed Annexin V-FITC/PI analysis. After 72 hr incubation, less fluorescent signal was detected in knockout luteal cells compared to control group (Fig. 10) under Axio Observer.Z1 (Carl Zeiss Micro Imaging GmbH, Germany) microscope. Again mRNA expression levels of VEGF, FGF2 and Caspase 3 was measured to elucidate the functional role of TSP1 after knocking out TSP1 expression. Interestingly, both VEGF and FGF2 showed significantly increased expression (p<0.05; Fig.11) in knocked out cells however, Caspase 3 expression was slightly down regulated which was consistent with both MTT assay and Annexin V assays.

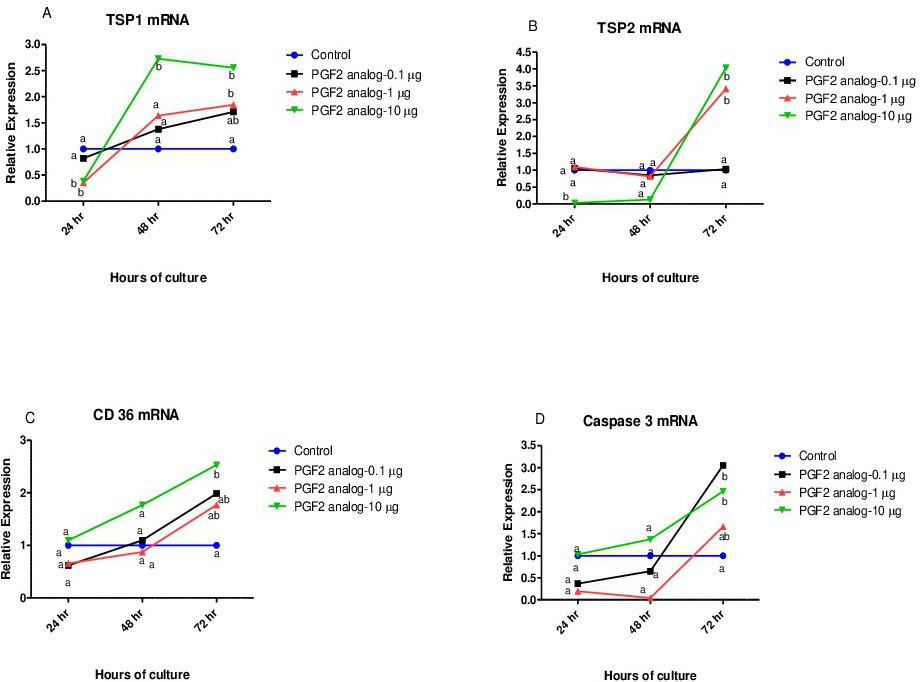

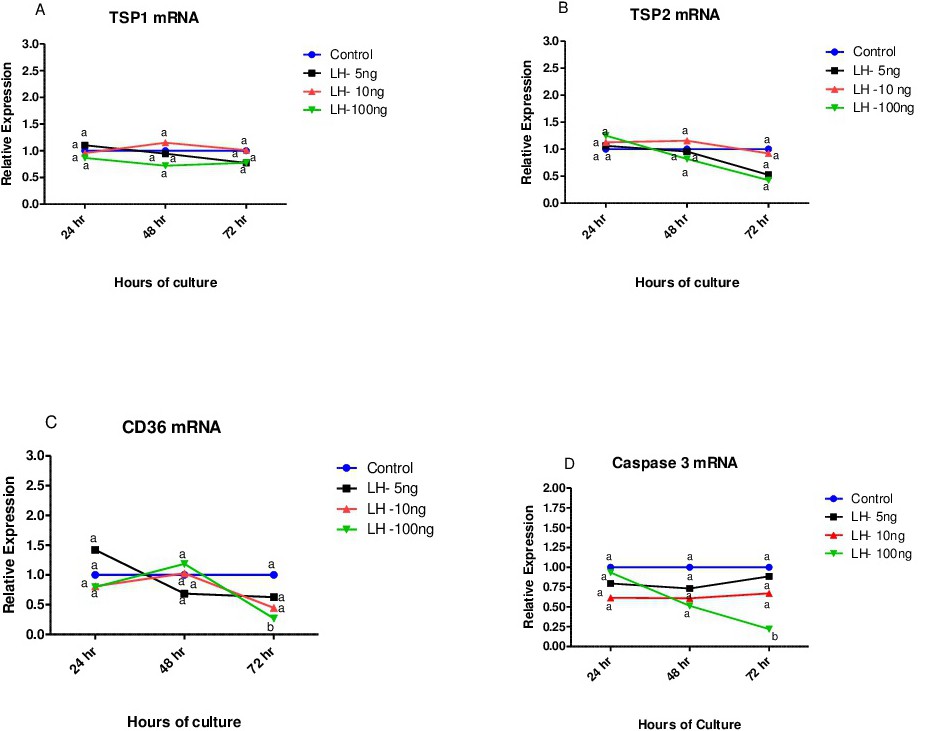

Demonstrating the effect of LH and PGF2α hormone on expression of Thrombospondin system
There were no significant difference in the expression pattern of TSPs (Fig. 12A, B) in cultured luteal cells with different doses of LH at various time interval in vitro; however the transcripts of receptor CD36 and pro-apoptotic Caspase 3 significantly decremented (p<0.05) with 100 ng/ ml LH compared to control at 72 hour of culture (Fig. 12C, D). An interesting expression pattern of thrombospondins and their receptor for luteal function, especially related to luteolysis was observed after in vitro stimulation of luteal cell culture with different doses of PGF2α for various period of time. TSP1, TSP2 and CD36 transcripts showed a significant increase with respect to time and concentration, especially at 72 hours with the highest dose (10 μg/ml media) of PGF2α analogue (p<0.05; Fig. 13 A-C). The effect of PGF2α at 10 μg/ml also revealed a highly significant increase in the apoptotic Caspase 3 at 72 hour of culture as compared to other doses at 24 and 48 hr of culture (p<0.05; Fig. 13 D).

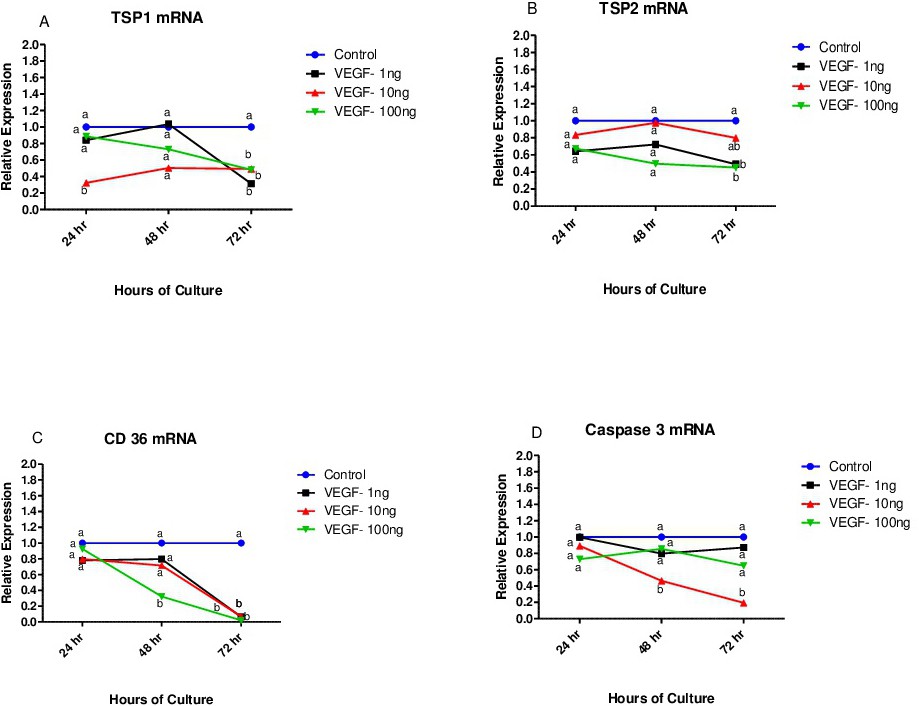

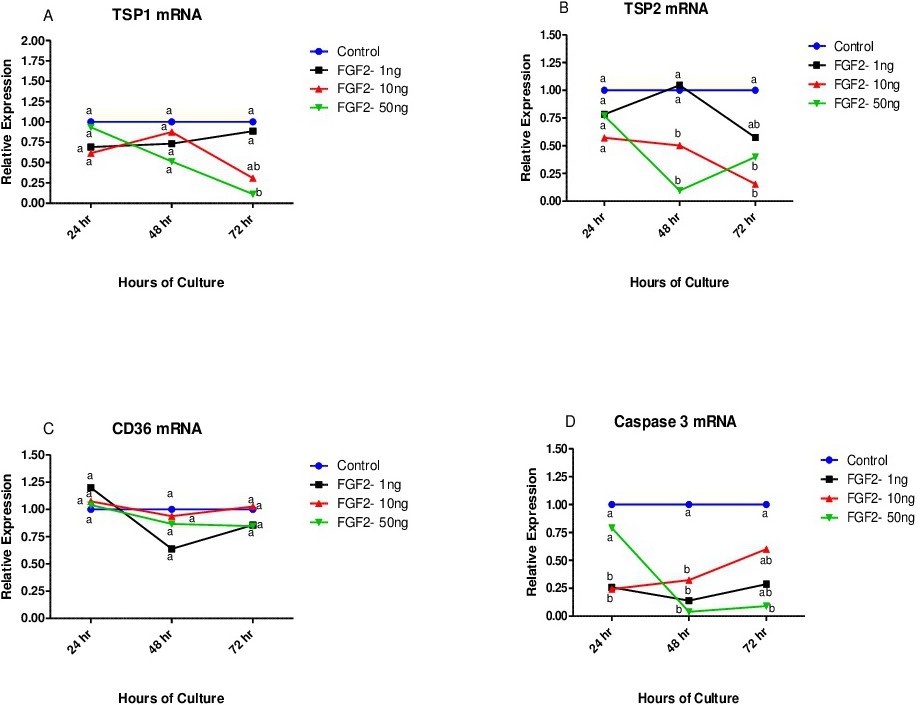

Transcriptional interaction of Thrombospondin with angiogenic growth factor (VEGF) and FGF2 in vitro luteal cell culture system
This in vitro study showed a remarkable inverse and significantly regulated expression of thrombospondins and its receptor on luteal cell culture system with increasing concentration of VEGF over a period of time in contrast to PGF2α. Of the three concentrations tested, VEGF at 100 ng/ml showed a highly significant down regulation of both TSPs and CD36 at 72 hr of culture (p>0.05; Fig. 14 A-C) as compared to other doses at both 24 and 48 hour. The expression of Caspase 3 is also consistent with the expression of TSPs, which showed significant down regulation (p<0.05; Fig. 14 D) at 72 hour of culture with highest dose of VEGF. The relative fold change in TSP transcripts and its receptor system in late stage culture luteal cells stimulated with various doses of FGF2 in vitro are given in Fig. 15. Luteal cells treated with FGF2 are based on our earlier findings in bovine luteal endothelial cells [18]. We have observed significant (p<0.05) down regulation of TSPs and Caspase 3 transcripts (Fig. 15 A, B & D) at 48 and 72 hour culture with highest dose of FGF2 (50ng/ml) as compare to control and 24 hour culture group, however, no significant difference was observed with CD36 mRNA expression (Fig. 15 C).
Discussion
The mammalian ovary has special characteristics wherein it undergoes rapid cyclical remodeling throughout the reproductive cycle that involves numerous tightly controlled cellular and hormonal events [1, 19]. The different phases of the CL life cycle are marked by dynamic changes in vasculature, luteal cell population, and later in the cycle, luteal demise which is characterized by cessation of steroid production, angio-regression, and apoptotic cell death. The relevance of thrombospondins to ovarian physiology has been demonstrated in the present study in which it was observed that TSPs and their receptors was significantly induced in various stages of cyclic corpus luteum in water buffalo. We identified novel stage specific expression of members of the TSP family in the bubaline ovary during CL development. In the present investigation, the highest expression of both TSPs and their receptors transcripts in late and regressed stage of CL is consistent with the findings of immunoblot (Fig. 2A and B, C) and immunohistochemistry experiments (Fig. 3, 4). Our results on TSPs mRNA expression are in agreement with earlier reports in cattle CL [20]. Thrombospondins have also been found to be expressed and localized in human GC and large luteal cells [21]. Our findings are also in accordance with the previous studies in which TSPs and their receptors CD36 and CD47 are found to be expressed and localized in the luteal cell and endothelial cell of bovine ovaries [9]. The expression pattern of CD36 receptor in bubaline CL as observed in the present study is in conformity with the findings of maximum expression in the corpora lutea during regression in cow [20]. Increased expression of CD47 has been reported to correlate with increased endothelial cell apoptosis. TSP1 binds CD47 in a high-affinity manner and inhibits NO-cGMP signaling, thus act as a potent inhibitor of endothelial cells proliferation, adhesion, and migration [22-23]. The upregulation of TSPs in late and regressed CL might be to induce the luteolysis of the PGF2α primed CL by disrupting angiogenesis and activating apoptosis mediated cell lysis [24]. Therefore, at the end of estrous cycle, thrombospondins might be acting directly through its receptors to affect angiogenesis and stimulate the apoptotic signaling cascade, ultimately leading to luteal regression [25].
TSP1 is a multimodular protein and its anti-angiogenic activity is exerted through multiple mechanisms involving different domains [25]. Thrombospondin1 (TSP1) is one of the most important endogenous anti-angiogenic molecules that bind and sequester angiogenic growth factors (AGFs) in the extracellular environment. In the present investigation, we have observed that the TSP1 dose time dependently abrogated both VEGF and FGF2 expression, decreased luteal cell viability and promoted induction of Caspase 3 in cultured luteal cells. Our findings are attuned with report that TSP1 could be inducing apoptosis via the inhibition of the survival promoting effects of VEGF [26]. In another study, Type III repeats of TSP1 bind and sequestrate FGF2. Using luteal endothelial cells, it was found that TSP1 inhibited FGF2 induced proliferations and migration in vitro [27]. Zalmen et al. [24] reported that TSP1 inhibited FGF2 induced proliferation and migration of luteal endothelial cells (LEC) and when both were added exogenously to cultures of LEC they mutually inhibit their expression. Greenaway et al. [28] also showed that TSP1 treatment decreased VEGF levels and rendered cells more susceptible to TNF-α induced apoptosis in rat ovary. The significant reduction of angiogenic growth factors may be due to the scavenging effect of TSP1 which act in a paracrine manner to reduce the bioavailability and angiogenic support in CL at the time of demise [24, 28].
The decreasing trend of progesterone concentration by TSP1 in a dose dependent manner that was observed in the present study might be due to the reduction in luteal cell number and inhibitory effect on progesterone biosynthetic pathway. Recently it was reported that Thrombospondin1 reduces viable cell numbers and induce apoptotic cell death in luteinized endothelial cells as evidenced by nuclear fragmentation [10]. Earlier reports have shown that TSP1 promotes follicular atresia in vitro by directly inducing apoptosis of granulosa cells [26]. In order to validate the transcriptional and functional regulation of thrombospondins and their interrelationship with angiogenic growth factors we have attempted to knockout TSP1 in luteal cells of buffalo by a very efficient CRISPR/Cas9 genome editing tool and all the effects of TSP1 on cultured luteal cells were found to be reversed. It was reported in a previous study that knockdown of TSP1 in vitro and in vivo resulted in an increase in VEGF levels in the ovaries of TSP1 null mice [28]. In another study, TSP1-null mice demonstrated significantly increased retinal vascularization due to higher level of VEGF expression [29]. The knockdown of TSP1 in luteal endothelial and granulosa cells by siRNA resulted in an increase in FGF2 mRNA level in cow [24]. Our knockout experiment supported the hypothesis that there exists a delicate balance between thrombospondins and other angiogenic growth factors like VEGF and FGF2 for proper luteal cell function and development in buffalo.
Luteinizing signals such as LH given in a supra-physiological dose, intended to activate IGF-1 receptors ultimately reduces the TSPs and their receptors [30]. These findings imply that the process of luteinization favors reduction of TSP expression and function [13]. In the present investigation, the reduced expression of the TSP family along with their receptors induced by LH could be due to the fact that luteinizing signal of gonadotrophin might have blocked the signals for activation of thrombospondins thus blocking the ability to efficiently establish the steroidogenic activity of CL. Our findings that PGF2α upregulated the expression of TSP system are in concurrence with previous reports, where PG treatment in the responsive CL, strongly upregulated thrombospondins and CD36 in bovine [24]. In another study, after induced luteolysis, the mRNA expression of TSPs and CD36 in CL were significantly increased after 24 and 48 hour of PGF injection respectively [20]. TSP1 can also activate latent TGFB1, which induces the disassembly of luteal capillary-like structures and disrupt the angiogenic potential of microvascular endothelial cells of bovine CL [31]. This study suggests that a functional relationship does exist between PGF2α and thrombospondin mediated vascular disruption of CLs that advance towards luteolysis.
Several works have been conducted so far to develop the functional relationship between pro-angiogenic growth factors VEGF and FGF2 with thrombospondins in various species of mammals. The bovine CL produces various angiogenic growth factors including VEGF, a potent mitogen for endothelial cells; stimulator of vascular permeability; strong luteotrophic factor of CL and indeed VEGF can stimulate progesterone secretion from bovine CL [32]. Therefore, we have attempted to mimic an in vivo situation wherein luteal cells were treated with VEGF and FGF2 to demonstrate their effect on thrombospondin system in buffalo CL. It was observed that both VEGF and FGF2 have down regulated TSPs, CD36 and Caspase3 transcripts. Data from an earlier report show that a decrease in TSP content and expression in medium and large bovine follicles compared with small follicles is associated with a concomitant increase in VEGF expression [9]. An inverse relationship has also been reported between VEGF and members of the THBS family in different physiological and pathological conditions [33]. In another study, a remarkable inverse expression pattern of thrombospondins relative to VEGF expression in ovarian follicles and corpora lutea in bovine was noticed [32]. VEGF might have suppressed the activation of thrombospondin system during CL development for its proper maturation and luteotropic function. Results of another study from our lab indicated that a higher concentration of FGF2 played a significant role in luteal steroidogenesis and up-regulated the expression of steroidogenic pathway intermediates in buffalo CL [5]. Moreover, neutralization of FGF2 by injecting FGF2 antibody leads to a reduction in luteal growth and steroidogenesis in bovine CL [34] and FGF2 was also able to partially abrogate TSP1-induced Caspase 3 activation [13]. Recently, it has been shown that immunoneutralization of FGF2 suppressed CL growth and progesterone production in the cow [35]. In our study we noticed that VEGF and FGF2 dose dependently down regulated TSP expression in cultured luteal cells. Therefore, the role of VEGF and FGF2 in initiation of angiogenesis suggests that, they are playing a role in the down regulation of the anti-angiogenic factors, TSPs during luteal development in buffalo.
Conclusion
In conclusion, the present study demonstrates the co-expression of thrombospondins along with their receptors at varying levels in different stages of CL progression with maximum expression during the late and regressing stages in buffalo. These results are consistent with the hypothesis that Thrombospondins are negatively correlated by LH, VEGF, FGF2 and positively by PGF2α, Thrombospondins also may be playing an essential modulatory role in bringing about structural and functional luteolysis stimulated by PGF2α possibly by promoting apoptosis of the luteal cells, reducing local bioavailability of pro-angiogenic growth factors and attenuating steroidogenesis in the luteal cells respectively. As TSP1 seems to be the most promising endogenous inhibitor of angiogenesis, therefore, it can be positioned at the crossroads between PGF2α priming of CL and its luteolysis.
Acknowledgements
We thank Director of Indian Veterinary Research Institute for providing necessary facilities for conducting this research work.
Disclosure Statement
No conflicts of interest exist.
