Restoration of F508-del Function by Transcomplementation: The Partners Meet in the Endoplasmic Reticulum



Emily Anne Smith Bergbower    Inna Sabirzhanova    Clément Boinot

William B. Guggino    Liudmila Cebotaru



Departments of Medicine and Physiology, Johns Hopkins University, Baltimore, MD, USA









Key Words

Gene therapy • Cystic fibrosis • Bimolecular interaction • Transcomplementation • Truncated CFTR



Abstract

Background/Aims: Because of the small size of adeno-associated virus, AAV, the cystic fibrosis conductance regulator, CFTR, cDNA is too large to fit within AAV and must be truncated.  We report here on two truncated versions of CFTR, which, when inserted into AAV1 and used to infect airway cells, rescue F508-del CFTR via transcomplementation.  The purpose of this study is to shed light on where in the cell transcomplementation occurs and how it results in close association between the endogenous F508-del and truncated CFTR.  Methods: We treated CF airway cells (CFBE41o-) with AAV2/1 (AAV2 inverted terminal repeats/AAV1 capsid) containing truncated forms of CFTR, ∆264 and ∆27-264 CFTR, who can restore the function of F508-del by transcomplementation. We addressed the aims of the study using a combination of confocal microscopy and short circuit currents measurements. For the latter, CF bronchial epithelial cells (CFBE) were grown on permeable supports.  Results: We show that both F508-del and the truncation mutants colocalize in the ER and that both the rescued F508-del and the transcomplementing mutants reach the plasma membrane together. There was significant fluorescence resonance energy transfer (FRET) between F508-del and the transcomplementing mutants within the endoplasmic reticulum (ER), suggesting that transcomplementation occurs through a bimolecular interaction. We found that transcomplementation could increase the Isc in CFBE41o- cells stably expressing additional wt-CFTR or F508-del and in parental CFBE41o- cells expressing endogenous levels of F508-del.  Conclusion: We conclude that the functional rescue of F508-del by transcomplementation occurs via a bimolecular interaction that most likely begins in the ER and continues at the plasma membrane.  These results come at an opportune time for developing a gene therapy for CF and offer new treatment options for a wide range of CF patients.





Introduction



Cystic fibrosis (CF), an autosomal disorder most common in Caucasians, is caused by defects in the CFTR, a chloride channel found in mucosal epithelia [1]. The most common mutant, F508-del, is well known to be retained within the ER and degraded by proteasomes [2].  There are well over 1000 mutations in the CFTR gene that cause a myriad of problems, including premature degradation, aberrant channel conductance or gating, premature translation termination resulting from early stop codons, and aberrant splicing [3, 4].

Gene therapy: Shortly after the CF gene was identified, there was tremendous enthusiasm for gene therapy as the ultimate way to restore health to CF patients [5].  This enthusiasm waned as the challenges in achieving a gene therapy became evident.  One vector that shows promise for CF gene therapy is adeno-associated virus (AAV). AAV2 gene transfer has been tested extensively in humans [6, 7] and found to be safe. Early studies using the first generation of virus, AAV2-CFTR, demonstrated gene transfer and transduction, but a large-scale repeat-dosing study with over 100 patients did not. There were two major reasons for this lack of clinical efficacy: First, AAV2 was not very efficient in transducing lung cells [8]; second, the weak promoter in the vector construct did not express enough protein to be effective [9]. To overcome the first hurdle, we developed CFTR viral vectors based on the AAV1 serotype [10]. The solution to the second problem was to add a more powerful chicken β-actin (CBA) [11] or tg38 [12] promoter to boost gene expression. However, the addition of the promoter required truncating CFTR in order to fit it within the packaging capacity of AAV [13, 14].

Transcomplementation of F508-del. In order to fit CFTR within the packaging capacity of AAV, we created the truncation mutant, ∆264 CFTR, by removing the first four transmembrane-spanning domains of CFTR.  Because ∆264 CFTR had low protein expression [15], we created another truncation mutant, ∆27-264 CFTR [16], to improve the levels of steady-state protein expressed by the original truncation mutant.  To create this new construct, we added the first 26 amino acids of wild type (wt) CFTR onto the N-terminus of our ∆264 CFTR. We based the design of ∆27-264 CFTR on our prior knowledge that the first 26 amino acids of CFTR are important for enhanced protein expression [17]. Others have demonstrated that the N-terminal tail of CFTR binds to important trafficking molecules such as syntaxin 1a [18].  Indeed, we showed that ∆27-264 CFTR expresses higher levels of steady-state protein than does ∆264 CFTR [15].

When we used it to infect monkey lungs, AAV5-∆264 CFTR increased the levels of endogenous wt CFTR protein [19]. In co-transfection studies in Cos7 and CFBE41o- cells and in the transfection of ∆264 CFTR into cells stably expressing wt and F508-del-CFTR, ∆264 CFTR increased the wt CFTR protein level and the ratio of mature C bands to immature B bands [15]. We discovered that the truncation mutants were not functioning on their own, but were rescuing F508-del by transcomplementation [16]. Transcomplementation occurs when certain truncation mutants such as ∆264 CFTR and ∆27-264 CFTR bind to F508-del and rescue its function. Rescue of ∆F508-CFTR by transcomplementation has been observed previously [20, 21]. One common theme among all these studies is that truncation mutants of CFTR capable of transcomplementation are extremely efficiently degraded. Thus, one theory holds that transcomplementation rescues ∆F508-CFTR via chaperone competition or displacement: Certain CFTR truncation mutants avidly bind to ERAD proteins such as valosin-containing protein (VCP), ATPase homolog 1 (Aha1), and histone deacetylase 6 (HDAC6) [21]. As a result, these mutants compete for binding or displace F508-del from the ERAD proteins, thereby allowing F508-del to reach the cell surface. A second theory holds that other truncation mutants bind directly to F508-del and effect its rescue through domain interactions between the different CFTR molecules.  Thus, chaperone displacement would be a consequence of a structurally rescued F508-del. The latter alternative would suggest that the transcomplementing truncation mutants bind to F508-del during translation, stabilize the protein, and remain together with F508-del as it is processed to the plasma membrane.  Because this scenario has not be demonstrated experimentally, the goal of the present study was use confocal microscopy to determine where F508-del and the transcomplementing truncation mutants actually associate within the cell and whether the transcomplementing truncation mutants and F508-del reside at the plasma membrane.





Materials and Methods



Cell culture

CFBE41o- cells stably transfected with F508-del (a gift of Erik Sorscher) or with wt CFTR, as well as parental cells (no additional CFTR, a gift of Dieter Gruenert [22]) were maintained in minimal essential Eagle’s medium (MEM, Invitrogen) with 10% FBS, penicillin/streptomycin, L-glutamate (200 mΜ), and puromycin (5 µg/mL, Sigma).



Microscopy

A Zeiss LSM 510 laser scanning system and 63x oil-immersion lens were used. CFBE41o- parental cells were seeded onto cover glasses and later transiently transfected with the plasmids KDEL-td-tomato, F508-del CFTR-GFP, Δ27-264 CFTR-mCherry, and Δ264 CFTR-mCherry for 48 h using Lipofectamine 2000. All these constructs contain the CBA promoter [13]. All tags were placed on the C-terminal domain.  The following steps were done at room temperature to prepare slides for assessment: After two washes with cold DPBS, the cells were fixed with 4% paraformaldehyde for 15 min. They were then permeabilized with 0.3% Triton X-100 in DPBS for 5-7 min and blocked with 3% bovine albumin serum (BSA) for 45 min. After blocking, cells were washed once with DPBS and then incubated with primary antibodies in 3% BSA for 1 h. The primary antibodies used were: anti-KDEL (Enzo Life Sciences #ADI-SPA-827-D), anti-golgin-97 (Life Technologies #A-21270), and anti-pan cadherin (Abcam #ab6528). CFTR was detected by its fluorescent tags or with anti-CFTR antibody 596 [23]. After incubation with primary antibody, the cells were incubated with secondary antibody: goat anti-mouse Alexa 647, goat anti-mouse AlexaFluor 488, or goat anti-mouse AlexaFluor 594. The cells were incubated with a 1:1000 dilution of DAPI for 5 min and washed three times with DPBS, then mounted using ProLong Gold Antifade (Invitrogen). Extended-focus images were taken on the Zeiss LSM 510 and processed for export as TIF files using Imaris Imaging Software. We verified previously that transcomplementation-tagged versions of CFTR undergo transcomplementation in a manner similar to that of those without tags [15].



FRET

∆264CFTR was subcloned from pcDNA3.1 into pmCherry-C1 (Clontech, #632524) using the following primers: 5'-tagggtaccatgatcgagaacatccaatctgtta-3' and 5'- taaacgggccctaaagccttgtatcttgca-3'. ∆27-264CFTR was subcloned from pcDNA3.1 into pmCherry-C1 (Clontech, #632524), and ∆F508-CFTR was subcloned from pcDNA3.1 into pAcGFP1-C1 (Clontech, #632470) using the following primers: 5'-ctaggtaccatgcagaggtcgcctctggaaaat-3' and 5'-taaacgggccctaaagccttgtatcttgca-3'. The GFP/mCherry (donor/acceptor) pair was used for acceptor photobleach FRET. Images for GFP and mCherry were collected before and after photobleaching with the 594-nm argon/2 laser at the maximum intensity. From the images, the signal intensity of GFP was measured with Zeiss image software, and FRET efficiency was calculated using the following formula:



where IPre and IPost correspond to the GFP signal intensity (with background signal subtracted) before and after photobleach, respectively. Note that FRET between 27-264 and F508 does occur within the ER region.



Short-circuit currents

Parental cells or CFBE41o- cells stably expressing DF508-CFTR or wt CFTR were grown on Transwell supports and treated with 10 µl of AAV2/1 (AAV1capsid/AAV2 ITR) containing either D264 CFTR (3.75X1012 vector genomes [vg]/ml) or D27-264 CFTR (2.19X1012 vg/ml). Virus was produced at the University of Florida Vector Core Facility.  The short-circuit currents (Isc) were measured in Ussing-type chambers (Physiological Instruments; San Diego, CA). Confluent CF bronchial epithelial cells (CFBE41o-) stably expressing F508-del or wt CFTR were seeded onto 12 mm-diameter Costar® Snapwell™ cell culture inserts (Corning Costar, Acton, MA; 3801) and cultured for 7 days to establish polarized monolayers. Once the monolayers had reached the relevant resistance, the inserts were mounted in an Ussing-type chamber and bathed in one of the solutions described below, maintained at 37°C, and stirred by bubbling with room air.

Short-circuit currents (Isc) were measured by voltage-clamping the transepithelial voltage across the monolayers to 0 mV with a multichannel voltage-current clamp amplifier (model VCC MC6, Physiologic Instruments) as described previously [24].





Results



F508-del and the N-terminal truncation mutants are located within the ER

Although transcomplementation is postulated to occur via a bimolecular interaction [25], the location of the transcomplementing forms of CFTR in the cell is unknown. In order to study their location, we utilized confocal microscopy. Fig. 1 shows that F508-del is located within a perinuclear compartment. F508-del localized with KDEL, a marker for the ER [26], confirming what is already well known: that F508-del is a mutant protein whose trafficking is arrested in the ER [27]. However, as we have observed previously [15], a small amount of F508-del escaped from the ER and trafficked to the plasma membrane.



Fig. 1. F508-del co-localizes with the ER marker KDEL. CFBE41o- cells stably expressing F508-del- CFBE41o- cells were transfected with KDEL-td-tomato plasmid (Red, ER) and plated on coverslips. After 48 h, the cells were fixed, permeabilized, and stained with DAPI (blue, nucleus) and antibodies against CFTR (green, CFTR 596). Representative extended-focus images are shown. The cell shown is one representative example of F508-del /KDEL colocalization (yellow) taken from three independent experiments. All cells that were successfully transfected with the KDEL-td-tomato plasmid displayed co-localization (yellow) between KDEL and F508-del. The location of the green dots over the nucleus in the middle panel occurred because the level of focus of this image includes the cytoplasm, which contains F508-del and the nuclear marker (DAPI). Note, however, that in the left panel that there is no co-localization between the nuclear marker DAPI and F508-del, indicating that F508-del is not located within the nucleus.



In order to determine where these two truncation mutants are located within the cell, we labeled them with mCherry on their N-termini. Fig. 2 shows a strong co-localization between ∆264 CFTR (Fig. 2A, left panel), ∆27-264 CFTR (Fig. 2C right panel), and KDEL, the ER marker. In contrast, there was little overlap between ∆264 CFTR (Fig. 2B left panel), ∆27-264 CFTR (Fig. 2Dright panel), and Golgin-97, the trans-Golgi marker protein [28], demonstrating that the trafficking of both truncated versions of CFTR is arrested mostly within the ER, from which they are efficiently degraded by the proteasome, facilitated by VCP [16]. It also shows that some trafficking of the truncated mutants does occur, allowing them to reach the Golgi.  The data also show that the addition of 27 amino acids to the N-terminal in ∆27-264 CFTR, which we have previously shown to increase the steady-state level of the protein [16], results in behavior similar to that of ∆264 CFTR.  Although it was primarily located within the ER, there was also some transit of the truncated protein out of the ER and detectable co-localization with Golgin-97 within the Golgi.



Fig. 2. Δ264 and Δ27-264 CFTR are primarily located in the ER, but some reaches the Golgi. (A) CFBE41o- parental cells were plated on coverslips and transfected with Δ264 CFTR-mCherry (red, CFTR). At 48 h post-transfection, the cells were fixed, permeabilized, and stained with DAPI (blue, nucleus) and antibodies against KDEL (green, ER). Close association or co-localization is indicated by a yellow signal. (B) Cells were treated the same way as in (A) but stained with antibodies against Golgin-97 (green, Golgi). The red arrows indicate close association or co-localization between Δ264 CFTR and Golgin-97. (C) CFBE41o- parental cells were plated on coverslips and transfected with Δ27-264 CFTR-mCherry (red, CFTR). (D) Cells were treated the same way as in (A) but stained with antibodies against Golgin-97 (green, Golgi). The red arrows indicate close association or co-localization between Δ27-264 CFTR and golgin-97. Representative extended-focus images are shown. The data shown were selected from four independent experiments. Representative extended-focus images are shown.



Co-localization occurs within the ER

Because when present alone, ∆264 CFTR and ∆27-264 CFTR are each found within the ER, with only little detectable localization with Golgin-97, we asked whether F508-del and the truncated versions of CFTR are located together within the ER, concomitant with the process of transcomplementation.  For this purpose, we conducted a triple-label co-localization experiment with F508-del, ∆264 (Fig. 3A), or ∆27-264 (Fig. 3B) and the ER marker, KDEL.  Fig. 3 shows the co-localization between ∆264 and ∆27-264 CFTR, respectively, F508-del and KDEL, demonstrating that co-localization of the endogenous F508-del and the truncated versions of CFTR occurs within the ER to form a transcomplementing complex consisting of F508-del and either ∆264 or ∆27-264 CFTR.  The question, then, is whether the transcomplementing complex moves out of the ER. To begin to address this question, we conducted a triple-label co-localization experiment with F508-del, ∆264 (Fig. 4A), or ∆27-264 (Fig. 4B) and the trans-Golgi marker, Golgin 97.  Fig. 4 shows that there is readily detectable co-localization of F508-del and the transcomplementing truncation mutants within the trans-Golgi.  Next, we determined whether a complex of proteins reaches the plasma membrane.  For this purpose we conducted a triple-label co-localization experiment with F508-del, ∆264 (Fig. 5A), or ∆27-264 (Fig. 5B) and the plasma membrane marker, E-cadherin [29].  Fig. 5 shows that F508-del and the transcomplementing truncation mutants, ∆264 or ∆27-264, do indeed co-localize at the plasma membrane.



Fig. 3. (A) Δ264 CFTR and F508-del are localized to the ER. CFBE41o- parental cells were plated on coverslips and co-transfected with Δ264 CFTR-mCherry (red, Δ264 CFTR) and F508-del CFTR-GFP (green, F508-del). At 48 h post-transfection, the cells were fixed, permeabilized, and stained with DAPI (blue, nucleus) and antibodies against KDEL (purple, ER). Close association or co-localization is indicated by a yellow signal. Co-transfection of F508-del CFTR-GFP and Δ264 CFTR-mCherry occurred in 21.1% of the cells (27/128); of the cells stained for KDEL (purple), 100% (11/11) showed co-localization or close association between Δ264 CFTR and F508-del. (B) Localization of Δ27-264 CFTR and F508-DEL CFTR in the ER. CFBE41o- parental cells were plated on coverslips and co-transfected with Δ27-264 CFTR-mCherry (red, Δ27-264 CFTR) and F508-des CFTR-GFP (green, F508-del). Co-transfection of F508-DEL CFTR-GFP and Δ27-264 CFTR-mCherry occurred in 23.5% of the cells (35/150); of the cells stained for KDEL (purple), 100% (15/15) showed co-localization or close association between Δ27-264 CFTR and F508-del Representative extended-focus images are shown, and data were selected from one of four independent experiments.

Fig. 4. (A) Co-transfection of Δ264 CFTR and F508-del results in Golgi localization. CFBE41o- parental cells were plated on coverslips and co-transfected with Δ264 CFTR-mCherry (red, Δ264 CFTR) and F508-des CFTR-GFP (green, F508-del). At 48 h post-transfection, the cells were fixed, permeabilized, and stained with DAPI (blue, nucleus) and antibodies against golgin-97 (purple, Golgi). The yellow signal with red arrows indicates close association or co-localization between Δ264 CFTR and Golgin-97. Representative extended-focus images are shown, and data were selected from one of four independent experiments. Co-transfection of F508-des CFTR-GFP and Δ27-264 CFTR-mCherry occurred in 21.1% of the cells (27/128); of the cells stained for golgin-97 (purple), 100% (6/6) showed co-localization or close association between Δ264 CFTR and F508-del. (B) Co-transfection of Δ27-264 CFTR and F508-del results in Golgi localization. CFBE41o- parental cells were plated on coverslips and co-transfected with Δ27-264 CFTR-mCherry (red, Δ27-264 CFTR) and F508-del CFTR-GFP (green, F508-del). Co-transfection of F508-DEL CFTR-GFP and Δ27-264 CFTR-mCherry occurred in 23.5% of the cells (35/150); of the cells stained for golgin-97 (purple), 100% (11/11) showed co-localization or close association between Δ27-264 CFTR and F508-del. Representative extended-focus images are shown, and data were selected from one of four independent experiments.

Fig. 5. (A) Δ264 CFTR and F508-del become localized to the plasma membrane. (A) CFBE41o- parental cells were plated on coverslips and co-transfected with Δ264 CFTR-mCherry (red, Δ264 CFTR) and F508-del CFTR-GFP (green, F508-del). At 48 h post-transfection, the cells were fixed, permeabilized, and stained with DAPI (blue, nucleus) and antibodies against cadherin (purple, plasma membrane). The yellow boxes indicate areas where there is close association or co-localization between Δ264 CFTR and cadherin. Co-transfection of F508-del CFTR-GFP and Δ264 CFTR-mCherry occurred in 21.1% of the cells (27/128); of the cells stained for cadherin (purple), 100% (10/10) showed co-localization or close association between Δ264 CFTR and F508-del. (B) Δ27-264 CFTR and F508-del become localized to the plasma membrane. (A) CFBE41o- parental cells were plated on coverslips and co-transfected with Δ27-264 CFTR-mCherry (red, Δ27-264 CFTR) and F508-del CFTR-GFP (green, F508-del). Co-transfection of F508-DEL CFTR-GFP and Δ27-264 CFTR-mCherry occurred in 23.5% of the cells (35/150); of the cells stained for cadherin (purple), 100% (9/9) showed co-localization or close association between Δ27-264 CFTR and F508-del. Representative extended-focus images are shown, and data were selected from one of four independent experiments. (C) The graphs show Pearson's correlation coefficients of Δ264 CFTR and Δ27-264 CFTR and cadherin when F508-del CFTR is co-transfected into cells, as compared to control samples (no F508-del CFTR). The coefficients were calculated using Imaris Imaging Software. Pearson's correlation coefficients were increased with F508-del CFTR co-transfection. Results are means ±SE. (n = 4) ****p<0.0001.



Association of F508-del with the transcomplementing truncation mutants occurs within the ER

To test whether the transcomplementing truncated CFTR and F508-del are associated within the ER, we utilized an acceptor-photobleaching FRET assay. We measured FRET by photobleaching within the perinuclear region of co-transfected CFBE41o- cells. Fig 6 represents experiments in which F508-del and ∆264 CFTR (A) or ∆27-264 CFTR (B) were co-transfected. Significant FRET was detected in both experiments. Given that Förster resonance energy transfer [30] is dependent upon the sixth power of the distance between the fluorophores, the distance between F508-del and 264 CFTR or ∆27-264 CFTR must be between 1 and 10 nM to attain significant FRET between them. The confocal microscopy data presented above and the FRET data presented here are consistent with transcomplementation occurring by a direct interaction between F508-del and the transcomplementing truncated forms. The net effect is to restore the stability of F508-del.



Fig. 6. Δ264 and Δ27-264 CFTR interact with F508-del. CFBE41o- cells were plated on coverslips and transfected with Δ264 (A) or Δ27-264 CFTR-mCherry (B) and ΔF508 CFTR-GFP. At 48 h post-transfection, the cells were fixed, and slides were mounted using mounting medium without anti-fade. Acceptor photobleaching was performed. Samples were bleached using the 561nm laser line of a Zeiss LSM 510 confocal microscope. Samples were then excited using the 488-nm laser line, and changes in green fluorescence were measured. (A) The left column is the image before photobleaching with a 561-nm laser, and the right column is the image after photobleaching. FRET efficiency was calculated by measuring the changes in the 488-nm signal before and after photobleaching. The statistical analysis of the FRET efficiency was obtained from the images. Results are means ±SE (n = 4). The FRET efficiency for the control sample is 0, since there was no green signal present to measure because of the single transfection.



Transcomplementation has functional consequences

For transcomplementation to be a useful therapy for CF, there must be enough rescue of function to have clinical benefit.  We therefore measured Isc; as a first step, we exposed CFBE41o- cells stably expressing wt CFTR to AAV containing ∆264 CFTR or ∆27-264 CFTR. We have shown previously that steady-state levels of wt-CFTR are increased following transcomplementation by AAV containing ∆264 CFTR or ∆27-264 CFTR[15]. Fig. 7A shows that this treatment produced an approximately 2-fold increase in wt-CFTR-generated currents. To evaluate the effectiveness of transcomplementation, we exposed cells in which F508-del was stably expressed at well above endogenous levels (Fig.7B) or parental cells (CFBE41o-)(Fig. 7C) that express only endogenous levels of F508-del to AAV containing either ∆264 or ∆27-264 CFTR. Although the magnitude of the currents was lower in the parental CFBE cells when compared to the cells expressing F508-del, the 2-fold increase in Isc was the same in both cases.

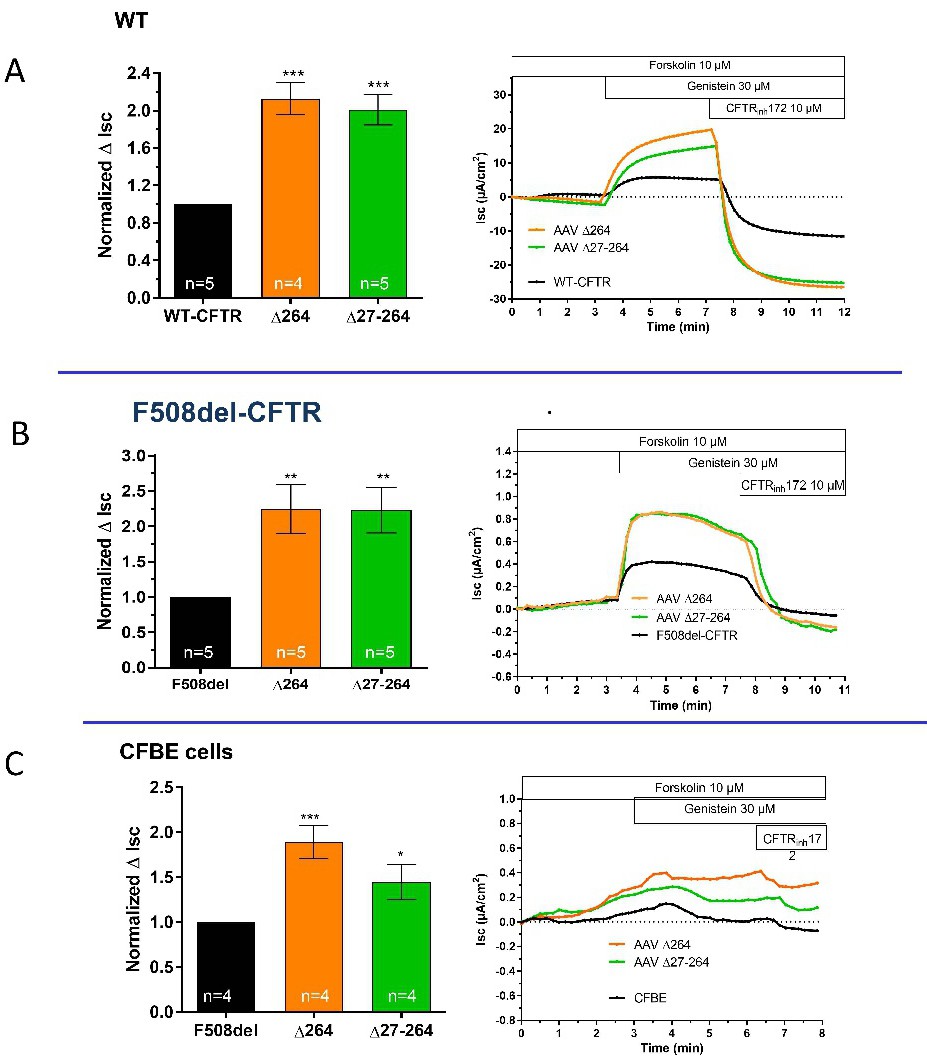

Fig. 7. Functional restoration of F508-del. Ussing chamber experiments were performed to evaluate CFTR-mediated Cl- secretion in parental CFBE41o- cells or cells stably expressing F508-del (F508del) or wt CFTR after treatment with either ∆27-264- or ∆264-containing AAV2/1 virus. The data show that transcomplementation rescues the function of wt CFTR (A), F508-del (B) and parental cells (C). Original short-circuit current recordings in untreated cells (black line) or after incubation of ∆27-264-, or ∆264- -containing AAV2/1 virus (10 µl, 7 days) in cells kept at 37°C. Corresponding ∆Isc summary data are normalized to untreated CFBE41o- cells. Data are expressed as the CFTRinh172-sensitive short-circuit current (∆Isc), calculated by subtracting the Isc after CFTRinh172 treatment from the peak forskolin-genistein-stimulated Isc. Normalized responses calculated by normalizing the ∆Isc response to the untreated condition. Statistical significance is indicated as follows: ns, no significant difference; *P<0.05; **P<0.01; ***P<0.001 (n=4-5 for each condition) when compared with the control condition. Amiloride (100 µM) was present during the whole duration of each experiment to avoid interference by ENaC-mediated Na+ currents.





Discussion



Misfolded proteins in CF are the result of several mutations in the CF gene [3].  The F508-del mutation is the most common mutation, and it causes at least two major problems with the protein without resulting in major changes in the structure of the NBD1 [31, 32]. It is now well known that the mutation destabilizes the NBD1 domain at physiological temperatures and disrupts the interaction of the NBD1 domain with the transmembrane domains [32]. Possible mechanisms to rescue these defects have received intense research interest.  We and others have shown that F508-del in NBD1 and other trafficking mutants in NBD2 can be rescued by transcomplementation [33]. The major question is how the transcomplementation rescues F508-del.  Here we show that ∆264 CFTR and ∆27-264 CFTR, when transfected individually into cells, are localized primarily to the ER and to some extent within the Golgi. This localization is consistent with their recognition by ERAD and degradation in proteasomes [16]. Interestingly, when they are co-expressed with F508-del, the transcomplementing mutants strongly localize with F508-del within the ER, but are then found at the trans-Golgi and the plasma membrane. These results, taken together, lead us to hypothesize that transcomplementation occurs with the ER and that the truncation mutants and F508-del move to the plasma membrane.

The FRET between ∆264 CFTR or ∆27-264 CFTR and F508-del suggests that transcomplementation takes place when the two molecules are in very close proximity.  These results, together with earlier binding studies [15], lead us to suggest that transcomplementation occurs via a bimolecular interaction between the transcomplementing truncated form and F508-del. We showed previously that when transcomplementation occurs, F508-del is functionally repaired and its residence time at the plasma membrane is extended [15, 33]. Several studies have demonstrated transcomplementation of F508-del utilizing different truncated forms of CFTR [33].  What they all have in common is the NBD1 domain.  We would hypothesize that the most likely scenario is that the transcomplementing truncated CFTR acts as a molecular chaperone [15]by binding to F508-del and allowing it to attain a stable and functional conformation that allows it to traffic to and function normally at the plasma membrane.

Will the restoration of function by transcomplementation be therapeutic? Since therapeutic transcomplementation would have to restore the function of the endogenous F508-del, a therapeutic benefit would fundamentally depend upon the efficiency of the rescue and the magnitude of the level of expression of the mutant F508-del. We addressed these requirements by utilizing CFBE41o- cells, which stably express additional F508-del, and the parental cells, which only express small amounts of endogenous CFTR. Neither ∆264 CFTR nor ∆27-264 CFTR produces chloride currents on its own [15], but each can rescue functional F508-del chloride channels. Therefore, we measured the short-circuit current in each of these cell lines. Although the magnitude of the currents was greater in the cells stably expressing additional F508-del, there was a 2-fold increase in the currents generated after rescue by transcomplementation, in both the cells stably expressing additional F508-del and in parental cells expressing endogenous levels of F508-del.  Cormet-Boyaka and colleagues [25], using their transcomplementation vector, also showed rescue of CFTR-generated Cl- currents in F508-del- containing CFBE41o- cells.  In addition, they observed that CFTR-dependent Cl- transport was rescued in F508-del-bearing CF mice, as assessed by nasal potential difference, when their transcomplementing vector was instilled into the nose using an adenoviral vector.  These data suggest that transcomplementation will be therapeutic; however, definitive proof of this concept awaits further study.

For patients with CF, new therapies based on chemical compounds that either potentiate chloride channel activity or rescue the processing of mutant CFTR have been approved by the FDA. The most striking effect of these therapies was first observed in the treatment of patients with G551D using the potentiator Ivacaftor (VX-770) [34, 35]. Subsequently, Orkambi, the combination of the potentiator Kalydeco (Ivacaftor) and the corrector Lumacaftor (VX-809), was approved for the treatment of patients with homozygous F508-del mutations [36]. In targeting the basic defects caused by certain mutations in the gene encoding CFTR, these new therapies provide a substantial improvement over previous treatments, which mainly targeted the symptoms associated with this progressive disease. However, there are over 1000 different mutations in CF patients [3], and many of these mutations affect CFTR in ways that are either too severe to be treated by VX-770, VX-809, or their combination, or that cannot be rescued at all by the existing therapies. Therefore, the most fundamental way to help every patient with CF is with gene therapy. As in any gene therapeutic approach for CF, there are numerous challenges before an efficient clinical therapy can be achieved. These challenges include targeting the proper cells necessary for restoration of CFTR function, achieving therapeutic levels of gene transfer and transduction or endogenous gene editing, and overcoming the body’s defenses against the introduction of foreign DNA, which may include both innate and acquired immunity (reviewed in [5, 37]).  However, given the renewed enthusiasm for gene therapeutic approaches, this is an opportune time for overcoming these challenges.





Acknowledgements



The authors wish to thank Dr. Deborah McClellan for editing the manuscript. The research was funding by the Cystic Fibrosis Foundation GUGGIN14XX0 and an NHLBI multi-PI grant, R01 HL122267, to LC and WBG.

EASB, IS, CB, VC, and LC conducted experiments; WBG interpreted data and wrote the manuscript; LC designed and conducted the studies, interpreted data, and wrote the manuscript.





Disclosure Statement



None of the authors has any financial interests that pertain directly to this work.





References



1 Fuller CM, Benos DJ: Cftr! Am J Physiol 1992;263:C267-286.
https://doi.org/10.1152/ajpcell.1992.263.2.C267



2 Riordan JR: Cystic fibrosis as a disease of misprocessing of the cystic fibrosis transmembrane conductance regulator glycoprotein. Am J Hum Genet 1999;64:1499-1504.
https://doi.org/10.1086/302429
PMID: 10330337



3 Sosnay PR, Siklosi KR, Van GF, Kaniecki K, Yu H, Sharma N, Ramalho AS, Amaral MD, Dorfman R, Zielenski J, Masica DL, Karchin R, Millen L, Thomas PJ, Patrinos GP, Corey M, Lewis MH, Rommens JM, Castellani C, Penland CM et al.: Defining the disease liability of variants in the cystic fibrosis transmembrane conductance regulator gene. NatGenet 2013;45:1160-1167.
https://doi.org/10.1038/ng.2745



4 Welsh MJ, Smith AE: Molecular mechanisms of CFTR chloride channel dysfunction in cystic fibrosis. Cell 1993;73:1251-1254.
https://doi.org/10.1016/0092-8674(93)90353-R
PMID: 7686820



5 Guggino WB, Cebotaru L: Adeno-Associated Virus (AAV) gene therapy for cystic fibrosis: current barriers and recent developments. Expert Opin Biol Ther 2017
https://doi.org/10.1080/14712598.2017.1347630
PMID: 28657358



6 Moss RB, Rodman D, Spencer LT, Aitken ML, Zeitlin PL, Waltz D, Milla C, Brody AS, Clancy JP, Ramsey B, Hamblett N, Heald AE: Repeated adeno-associated virus serotype 2 aerosol-mediated cystic fibrosis transmembrane regulator gene transfer to the lungs of patients with cystic fibrosis: a multicenter, double-blind, placebo-controlled trial. Chest 2004;125:509-521.
https://doi.org/10.1378/chest.125.2.509
PMID: 14769732



7 Moss RB, Milla C, Colombo J, Accurso F, Zeitlin PL, Clancy JP, Spencer LT, Pilewski J, Waltz DA, Dorkin HL, Ferkol T, Pian M, Ramsey B, Carter BJ, Martin DB, Heald AE: Repeated aerosolized AAV-CFTR for treatment of cystic fibrosis: a randomized placebo-controlled phase 2B trial. Hum Gene Ther 2007;18:726-732.
https://doi.org/10.1089/hum.2007.022
PMID: 17685853



8 Ding W, Zhang L, Yan Z, Engelhardt JF: Intracellular trafficking of adeno-associated viral vectors. Gene Ther 2005;12:873-880.
https://doi.org/10.1038/sj.gt.3302527
PMID: 15829993



9 Flotte TR, Afione SA, Solow R, Drumm ML, Markakis D, Guggino WB, Zeitlin PL, Carter BJ: Expression of the cystic fibrosis transmembrane conductance regulator from a novel adeno-associated virus promoter. J Biol Chem 1993;268:3781-3790.
PMID: 7679117



10 Gao G, Vandenberghe LH, Wilson JM: New recombinant serotypes of AAV vectors. CurrGene Ther 2005;5:285-297.
https://doi.org/10.2174/1566523054065057
PMID: 15975006



11 Xu L, Daly T, Gao C, Flotte TR, Song S, Byrne BJ, Sands MS, Parker PK: CMV-beta-actin promoter directs higher expression from an adeno-associated viral vector in the liver than the cytomegalovirus or elongation factor 1 alpha promoter and results in therapeutic levels of human factor X in mice. Hum Gene Ther 2001;12:563-573.
https://doi.org/10.1089/104303401300042500
PMID: 11268288



12 Zhang LN, Karp P, Gerard CJ, Pastor E, Laux D, Munson K, Yan Z, Liu X, Godwin S, Thomas CP, Zabner J, Shi H, Caldwell CW, Peluso R, Carter B, Engelhardt JF: Dual therapeutic utility of proteasome modulating agents for pharmaco-gene therapy of the cystic fibrosis airway. MolTher 2004;10:990-1002.
https://doi.org/10.1016/j.ymthe.2004.08.009
PMID: 15564131



13 Sirninger J, Muller C, Braag S, Tang Q, Yue H, Detrisac C, Ferkol T, Guggino WB, Flotte TR: Functional characterization of a recombinant adeno-associated virus 5-pseudotyped cystic fibrosis transmembrane conductance regulator vector. Hum Gene Ther 2004;15:832-841.
https://doi.org/10.1089/1043034041839262
PMID: 15353038



14 Vidović D, Carlon MS, da Cunha MF, Dekkers JF, Hollenhorst MI, Bijvelds MJ, Ramalho AS, Van den Haute C, Ferrante M, Baekelandt V: rAAV-CFTRΔR rescues the cystic fibrosis phenotype in human intestinal organoids and cystic fibrosis mice. Am J Respir Crit Care Med 2016;193:288-298.
https://doi.org/10.1164/rccm.201505-0914OC
PMID: 26509335



15 Cebotaru L, Woodward O, Cebotaru V, Guggino WB: Transcomplementation by a truncation mutant of cystic fibrosis transmembrane conductance regulator (CFTR) enhances DeltaF508 processing through a biomolecular interaction. J Biol Chem 2013;288:10505-10512.
https://doi.org/10.1074/jbc.M112.420489
PMID: 23463513



16 Cebotaru L, Vij N, Ciobanu I, Wright J, Flotte T, Guggino WB: Cystic fibrosis transmembrane regulator missing the first four transmembrane segments increases wild type and DeltaF508 processing. J Biol Chem 2008;283:21926-21933.
https://doi.org/10.1074/jbc.M709156200
PMID: 18508776



17 Devidas S, Yue H, Guggino WB: The second half of the cystic fibrosis transmembrane conductance regulator forms a functional chloride channel. J Biol Chem 1998;273:29373-29380.
https://doi.org/10.1074/jbc.273.45.29373
PMID: 9792638



18 Naren AP, Quick MW, Collawn JF, Nelson DJ, Kirk KL: Syntaxin 1A inhibits CFTR chloride channels by means of domain-specific protein-protein interactions. Proc Natl Acad Sci U S A 1998;95:10972-10977.
https://doi.org/10.1073/pnas.95.18.10972
PMID: 9724814



19 Fischer AC, Smith CI, Cebotaru L, Zhang X, Askin FB, Wright J, Guggino SE, Adams RJ, Flotte T, Guggino WB: Expression of a truncated cystic fibrosis transmembrane conductance regulator with an AAV5-pseudotyped vector in primates. MolTher 2007;15:756-763.
https://doi.org/10.1038/sj.mt.6300059
PMID: 17299412



20 Cormet-Boyaka E, Jablonsky M, Naren AP, Jackson PL, Muccio DD, Kirk KL: Rescuing cystic fibrosis transmembrane conductance regulator (CFTR)-processing mutants by transcomplementation. ProcNatlAcadSciUSA 2004;101:8221-8226.
https://doi.org/10.1073/pnas.0400459101
PMID: 15141088



21 Sun F, Mi Z, Condliffe SB, Bertrand CA, Gong X, Lu X, Zhang R, Latoche JD, Pilewski JM, Robbins PD, Frizzell RA: Chaperone displacement from mutant cystic fibrosis transmembrane conductance regulator restores its function in human airway epithelia. FASEB J 2008;22:3255-3263.
https://doi.org/10.1096/fj.07-105338
PMID: 18556464



22 Illek B, Maurisse R, Wahler L, Kunzelmann K, Fischer H, Gruenert DC: Cl transport in complemented CF bronchial epithelial cells correlates with CFTR mRNA expression levels. Cell Physiol Biochem 2008;22:57-68.
https://doi.org/10.1159/000149783
PMID: 18769032



23 Cui L, Aleksandrov L, Chang XB, Hou YX, He L, Hegedus T, Gentzsch M, Aleksandrov A, Balch WE, Riordan JR: Domain interdependence in the biosynthetic assembly of CFTR. J Mol Biol 2007;365:981-994.
https://doi.org/10.1016/j.jmb.2006.10.086
PMID: 17113596



24 Lopes-Pacheco M, Boinot C, Sabirzhanova I, Morales MM, Guggino WB, Cebotaru L: Combination of Correctors Rescue ΔF508-CFTR by Reducing Its Association with Hsp40 and Hsp27. J Biol Chem 2015;290:25636-25645.
https://doi.org/10.1074/jbc.M115.671925
PMID: 26336106



25 Cormet-Boyaka E, Hong JS, Berdiev BK, Fortenberry JA, Rennolds J, Clancy JP, Benos DJ, Boyaka PN, Sorscher EJ: A truncated CFTR protein rescues endogenous DeltaF508-CFTR and corrects chloride transport in mice. FASEB J 2009;23:3743-3751.
https://doi.org/10.1096/fj.08-127878
PMID: 19620404



26 Tang BL, Wong SH, Low SH, Hong W: Retention of a type II surface membrane protein in the endoplasmic reticulum by the Lys-Asp-Glu-Leu sequence. J Biol Chem 1992;267:7072-7076.
PMID: 1348058



27 Lukacs GL, Mohamed A, Kartner N, Chang XB, Riordan JR, Grinstein S: Conformational maturation of CFTR but not its mutant counterpart (DeltaF508) occurs in the endoplasmic reticulum and requires ATP. EMBO J 1994;13:6076-6086.
https://doi.org/10.1002/j.1460-2075.1994.tb06954.x
PMID: 7529176



28 Barr FA, Short B: Golgins in the structure and dynamics of the Golgi apparatus. Curr Opin Cell Biol 2003;15:405-413.
https://doi.org/10.1016/S0955-0674(03)00054-1
PMID: 12892780



29 Brüser L, Bogdan SJCSHpib: Adherens Junctions on the Move-Membrane Trafficking of E-Cadherin. Cold Spring Harb Perspect Biol 2017:pii:a029140.
https://doi.org/10.1101/cshperspect.a029140
PMID: 28096264



30 Förster T: Zwischenmolekulare Energiewanderung und Fluoreszenz. Annalen der Physik 1948;437:55-75.
https://doi.org/10.1002/andp.19484370105



31 Lewis HA, Zhao X, Wang C, Sauder JM, Rooney I, Noland BW, Lorimer D, Kearins MC, Conners K, Condon B, Maloney PC, Guggino WB, Hunt JF, Emtage S: Impact of the deltaF508 mutation in first nucleotide-binding domain of human cystic fibrosis transmembrane conductance regulator on domain folding and structure. J Biol Chem 2005;280:1346-1353.
https://doi.org/10.1074/jbc.M410968200
PMID: 15528182



32 Mendoza JL, Schmidt A, Li Q, Nuvaga E, Barrett T, Bridges RJ, Feranchak AP, Brautigam CA, Thomas PJ: Requirements for efficient correction of DeltaF508 CFTR revealed by analyses of evolved sequences. Cell 2012;148:164-174.
https://doi.org/10.1016/j.cell.2011.11.023
PMID: 22265409



33 Cebotaru L, Guggino WB: Complement yourself: Transcomplementation rescues partially folded mutant proteins. Biophys Rev 2014;6:169-180.
https://doi.org/10.1007/s12551-014-0137-3
PMID: 24949105



34 Boyle MP, Bell SC, Konstan MW, McColley SA, Rowe SM, Rietschel E, Huang X, Waltz D, Patel NR, Rodman D: A CFTR corrector (lumacaftor) and a CFTR potentiator (ivacaftor) for treatment of patients with cystic fibrosis who have a phe508del CFTR mutation: a phase 2 randomised controlled trial. Lancet Respir Med 2014;2:527-538.
https://doi.org/10.1016/S2213-2600(14)70132-8
PMID: 24973281



35 Accurso FJ, Rowe SM, Clancy JP, Boyle MP, Dunitz JM, Durie PR, Sagel SD, Hornick DB, Konstan MW, Donaldson SH, Moss RB, Pilewski JM, Rubenstein RC, Uluer AZ, Aitken ML, Freedman SD, Rose LM, Mayer-Hamblett N, Dong Q, Zha J et al.: Effect of VX-770 in persons with cystic fibrosis and the G551D-CFTR mutation. N Engl J Med 2010;363:1991-2003.
https://doi.org/10.1056/NEJMoa0909825
PMID: 21083385 PMCid:PMC3148255



36 Mayer M: Lumacaftor-ivacaftor (Orkambi) for cystic fibrosis: behind the 'breakthrough'. Evid Based Med 2016;21:83-86.
https://doi.org/10.1136/ebmed-2015-110325
PMID: 26718821



37 Mueller C, Flotte TR: Gene therapy for cystic fibrosis. Clin Rev Allergy Immunol 2008;35:164-178.
https://doi.org/10.1007/s12016-008-8080-3
PMID: 18600482
