Effects of Perfusion Pressures on Podocyte Loss in the Isolated Perfused Mouse Kidney
Thiago Striedera Victor G. Puellesa,b Michael Vogtc Eva M. Buhld
Turgay Saritasa Ralf Hausmanne Viktor Sterzera Katja Leuchtlea
Peter Boora,d Jürgen Floegea Marcus J. Moellera Eleni Stamelloua,d
aDivision of Nephrology and Clinical Immunology, RWTH Aachen University Hospital, Aachen, Germany, bDepartment of Medicine III, University Medical Center Hamburg-Eppendorf, Hamburg, Germany, cCore Facility "Two-Photon Imaging" IZKF Aachen, RWTH University of Aachen, Aachen, Germany, dInstitute of Pathology and Electron Microscopy Facility, RWTH University of Aachen, Aachen, Germany, eInstitute of Clinical Pharmacology, RWTH Aachen University Hospital, Aachen, Germany
Key Words
Glomerular hypertension • Glomerular hyperfiltration • Mechanical stress • Progression • CKD • Chronic kidney disease
Abstract
Background/Aims: Podocytes are lost in most glomerular diseases, leading to glomerulosclerosis and progressive kidney disease. It is generally assumed, that podocytes are exposed to the filtration flow and thus to significant shear forces driving their detachment from the glomerular basement membrane (GBM). In this context, foot process effacement has been proposed as potential adaptive response to increase adhesion of podocytes to the GBM. Methods: We have tested these hypotheses using optical clearing and high-resolution 3-dimensional morphometric analysis in the isolated perfused murine kidney. We investigated the dynamics of podocyte detachment at different perfusion pressures (50, 300 and more than 450 mmHg) in healthy young or old mice (20 vs. 71 weeks of age), or mice injected with anti-GBM serum to induce global foot process effacement. Results: Results show that healthy podocytes in young mice are tightly attached onto the GBM and even supramaximal pressures did not cause significant detachment. Compared to young mice, in aged mice and mice with anti-GBM nephritis and foot process effacement, gradual progressive loss of podocytes had occurred already before perfusion. High perfusion pressures resulted in a relatively minor additional loss of podocytes in aged mice. In mice with anti-GBM nephritis significant additional podocyte loss occurred at this early time point when increasing perfusion pressures to 300 mmHg or higher. Conclusion: This work provides the first experimental evidence that podocytes are extraordinarily resistant to acutely increased perfusion pressures in an ex vivo isolated kidney perfusion model. Only in glomerular disease, significant numbers of injured podocytes detached following acute increases in perfusion pressure.
Introduction
Glomerular hypertension and hyperfiltration damage the glomerulus leading to progressive glomerular disease. It is widely believed that increased perfusion pressure exposes the tuft to increased mechanical stress challenging the adhesion of podocytes to the glomerular basement membrane (GBM), contributing to their detachment [1, 2].
Podocytes are highly differentiated, post-mitotic cells, essential for an intact glomerular filtration barrier. Podocyte loss is most likely the result of detachment of viable cells from the GBM rather than apoptosis or necrosis [3-6] as it has been possible to culture podocytes recovered from the urine of patients [4]. Detachment of viable podocytes from the GBM may result from impaired attachment mechanisms or altered mechanical forces. Impaired attachment to the GBM may be due to cellular injury or reduced expression of adhesion molecules and is mainly associated with inflammatory glomerular diseases. With respect to mechanical forces relevant for the podocyte, there are two key determinants, namely filtration pressure and filtrate flow [7-9]. Filtration pressure generates circumferential wall stress and acts as a distending force on the GBM. Variations in transmural hydrostatic pressure are compensated effectively by the ability of the GBM to act as an elastic membrane and expand or to shrink in surface area [8, 10]. On the other hand, filtrate flow across the GBM exerts tangential forces on the surface of podocytes, i.e. shear stress. We know from in vitro studies that podocytes are highly susceptible to shear stress detaching from their substrate when exposed to shear stresses more than 0.025 Pa [11] and adapting an intermediate phenotype that may help them to counteract flow-derived forces [12]. Whether glomerular hypertension affects podocytes via an increased filtration pressure and/ or increased filtration remains still unclear.
In this study, we provide the first analysis of the capability of podocytes to resist increased mechanical forces in an ex vivo model. Podocyte loss was quantified with high resolution using tissue clearing and 3-dimensional morphometric analysis in young and healthy mice, in aged mice and mice with diffuse podocyte effacement induced by an anti-GBM serum.
Materials and Methods
Animals
All animal experiments were conducted according to the guidelines of the German law for the welfare of animals, and were approved by Landesamt für Natur, Umwelt und Verbraucherschutz Nordrhein-Westfalen (Az 84-02.04. 2015.A469). Mice were housed in a specific pathogen-free facility with free access to chow and water and a 12-hour day/night cycle. Breeding and genotyping were done according to standard procedures. Pod-rtTA/LC1/R26R/H2BeGFP mice on a FVB/N genetic background have been described before [13]. To activate transgene expression of Pod-rtTA-eGFP, mice received doxycycline via the drinking water ad libitum for 7 days (2 g/l, 5% sucrose, protected from light) followed by a washout period of 1 week as per previous reports. Anti-GBM nephritis was induced by a single intraperitoneal injection of 5 mg/g bodyweight nephrotoxic serum as previously described [14].
Kidney perfusion

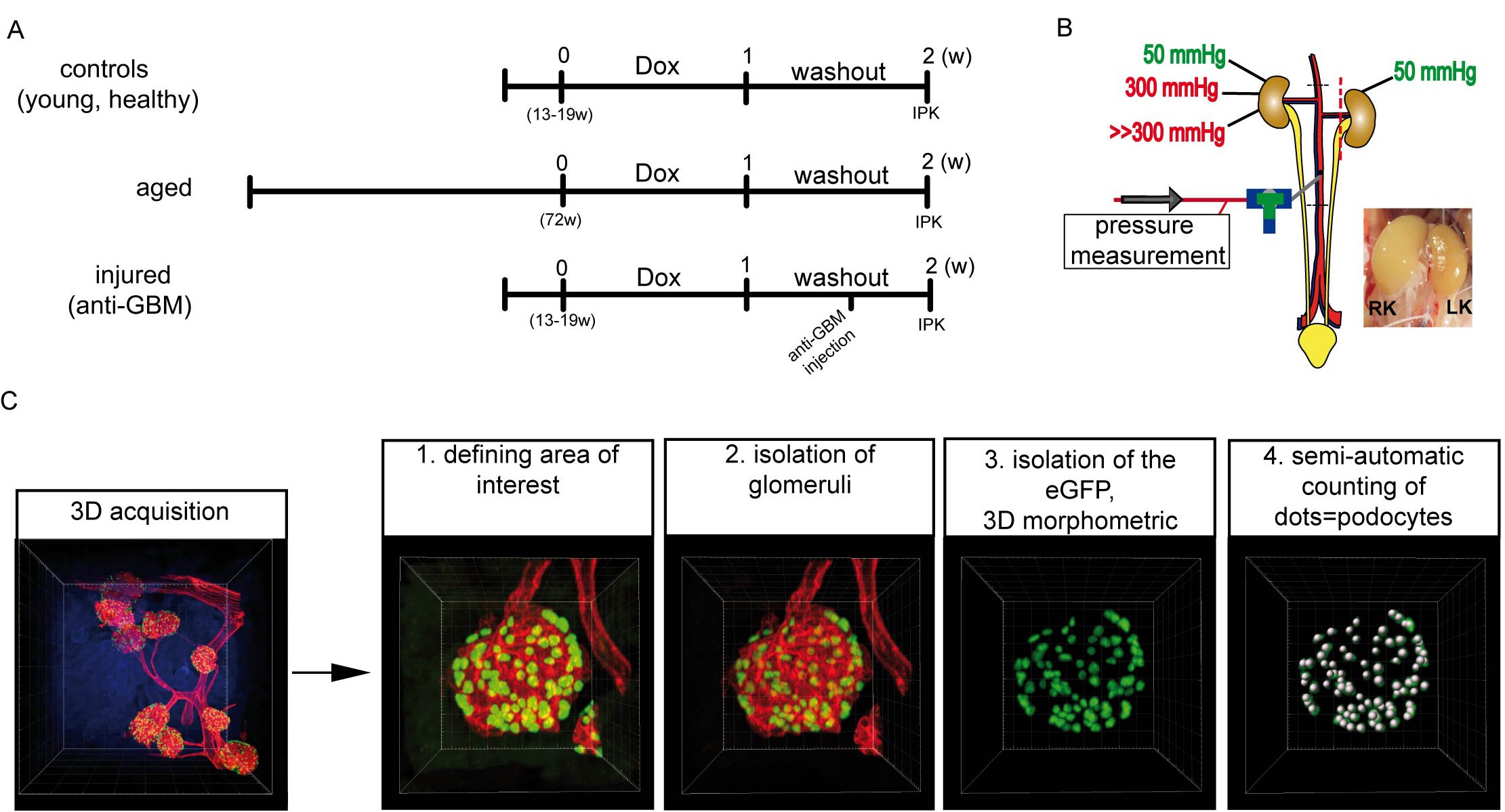

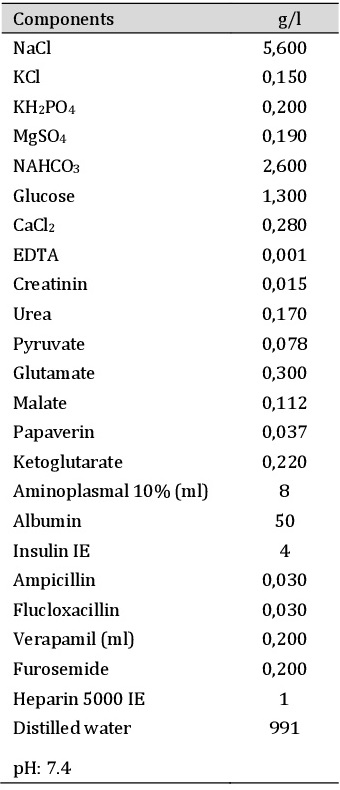

The isolated kidney perfusion model was used as described elsewhere [15]. Briefly, the mice were narcotized with an intraperitoneal injection of xylazin/ketamine (0,1ml/10g body weight i.p.), and then both kidneys were perfused with a complex modified Krebs-Henseleit-solution (Table 1) supplemented with 5% bovine serum albumin (BSA) at 37°C to mimic the physiological milieu during the experiment. Maximal vasodilatation of the kidney vasculature was induced by 1. subcutaneous injection of verapamil (50µl) immediately after induction of anesthesia and 2. addition of papaverine to the perfusion solution. After initial perfusion for 5 minutes at 50 mmHg a fluorescently-labeled lectin (Communis I - RCA120; Vector Laboratories: RL-1082; 4 μl in 986 μl of saline) was injected to label endothelial cells. Kidneys were perfused for additional 5 minutes with the modified Krebs-Henseleit-solution with 5% BSA. After that, the left kidney which served as paired control in every experiment was removed after careful ligation of the left renal vessels, cut into slices, and directly immersed in 3% paraformaldehyde (PFA) in phosphate-buffered saline (PBS). The right kidney was perfused either for additional 5 minutes at 300 mmHg or with supramaximal pressure (>>300mmHg, filtration pressures were estimated to be well above 400 mmHg), applied manually, with a total volume of 50 ml perfusion solution. The kidneys were perfused with a constant pressure of 50 mmHg or 300 mmHg by using a pressure-controlled pump (Universal Perfusion Systems UP-100, Hugo-Sachs Electronics, Germany). Then the right kidney was removed, cut into 2 mm slices and immersed in 3% paraformaldehyde (PFA) in phosphate-buffered saline (PBS).
3D imaging and computational analysis
PFA-immersed kidney slices were incubated on a mechanical shaker for 5 days at room temperature. Thereafter, fixed samples were washed in 1x PBS and placed in a mechanical shaker overnight at room temperature. Kidney slices were then placed in high-grade 100% ethanol (Merck; 100983) for 1 hour at room temperature with gentle shaking (at least 1 change to fresh ethanol), followed by direct immersion in Ethyl Cinnamate (ECi) (Sigma-Aldrich, St. Louis, MO; 112372) and were left overnight in a gentle shaker at room temperature under light protection. Tissue translucency was achieved in less than 1 hour. For upright microscopes, we used disposable in-house-built chambers as previously described [16]. Most experiments were performed using a 2-photon microscope (LaVision BioTec TriMScope, “Medizinische Fakultät RWTH Aachen, IZKF Aachen, Core Facilities). Fiji imaging software was used to move through the Z-axis of each stack of serial optical sections and to isolate individual glomeruli via 3D cropping [16]. 40 glomeruli per kidney (20 subcortical and 20 juxtamedullary) were selected for analysis. Thus, in total 1200 glomeruli were analyzed in this study to obtain results with sufficient precision. Podocytes were identified as eGFP+ cells. Quantification of capillary volume, glomerular volume as well as nuclei number (dots) and volume was performed using a 3D rendering and analysis software (Imaris v9.1; Bitplane AG, Zurich, Switzerland). The distance of podocytes from the vascular pole was calculated using Bitplane XTension “Spot Closest. Distance”. Automated quantification of podocytes was performed as previously described [17]. Image analysis was performed using Imaris (Biplane AG Zurich, Switzerland). Each glomerulus was defined by its lectin-labeled afferent arteriole. 20 subcortical and 20 juxtamedullary (defined by their distance from the cortical surface).
Light microscopy & Immunofluorescence
For light microscopy, the 4% buffered formalin-fixed kidney fragments were dehydrated, embedded in paraffin and stained with periodic acid–Schiff (PAS). The percentage of abnormal/injured glomeruli was calculated based on the identification of 50 representative glomerular cross-sections per mouse selected during a systematic walk across the renal cortex. Our standard immunofluorescence protocol [18] was performed on 2 μm paraffin-embedded sections. The following antibodies were used: chicken polyclonal anti-GFP (ab13970; Abcam), mouse monoclonal anti-synaptopodin (sc-515842; Santa Cruz Biotechnology), polyclonal rabbit anti-mouse p57 (sc-8298; Santa-Cruz Biotechnology), rabbit polyclonal anti-WT1 (sc-192; Santa-Cruz Biotechnology), Cy2 donkey anti-chicken (703-225-155; Dianova, Hamburg, Germany), Alexa Fluor546 goat anti-mouse IgG1(A-21123; ThermoFischer), polyclonal donkey anti-rabbit AF555 (A31572; Life Technologies, Carlsbad, CA).
Electron Microscopy
Small pieces of the cortex were fixed in Karnovsky-solution and embedded in Epon (Serva, Heidelberg, Germany). Ultrathin sections were examined with a transmission electron microscope ZEISS Leo 906 at 60 kV by a magnification from 3597-6000x. Samples were washed in 0.1 M Soerensen’s phosphate buffer (Merck, Darmstadt, Germany), post-fixed in 1% OsO4 (Roth, Karlsruhe, Germany) in 17% sucrose buffer (Merck, Darmstadt, Germany) and dehydrated by ascending ethanol series (30, 50, 70, 90 and 100%) for 10 min each. The last step was repeated 3 times. Dehydrated specimens were incubated in propylene oxide (Serva, Heidelberg, Germany) for 30 min, in a mixture of Epon resin (Serva, Heidelberg, Germany) and propylene oxide (1:1) for 1h and finally in pure Epon for 1h. Epon polymerization was performed at 90°C for 2h. Ultrathin sections (70-100 nm) were cut by ultramicrotome (Reichert Ultracut S, Leica, Wetzlar, Germany) with a diamond knife (Leica) and picked up on Cu/Rh grids (HR23 Maxtaform, Plano, Wetzlar, Germany). Contrast was enhanced by staining with 0.5% uranyl acetate and 1% lead citrate (both EMS, Munich, Germany). Samples were viewed at an acceleration voltage of 60 kV using a Zeiss Leo 906 (Carl Zeiss, Oberkochen, Germany) transmission electron microscope.
Statistical analysis
Statistical analyses were performed with GraphPad Prism v8 software. All values are expressed as means ± SD. For a comparison of 2 groups, a t-test was used. Comparison of several groups was performed using analysis of variance; post hoc Tukey correction was used for multiple comparisons. All tests were 2-tailed and statistical significance was defined as P < 0.05.
Results
Semi-automatic method to determine the number of podocytes per glomerulus
Three groups were studied, i.e. healthy young and old mice and mice with anti-GBM glomerulonephritis (♂:♀ 1:1). Young, healthy mice were 15-21 weeks old, whereas old (aged) mice were 74 weeks old. Global foot process effacement was induced in 14-20 week old mice via a single injection of anti-GBM serum 3 days before setting up the isolated perfused kidney model (Fig. 1A), as previously described [19].
To determine the influence of intrarenal perfusion pressure on podocytes, kidneys were subjected to different perfusion pressures in the isolated kidney perfusion model. First, both kidneys were always perfused at 50 mmHg for 5 min. To test whether our perfusion solution preserved the integrity of the glomerulus in the viable unfixed kidneys, 2 mice were perfused at a constant pressure of 100 mmHg for 90 min. Perfusion, urinary flow (25 µl/min/gr body weight) as well as inulin clearance (22 µl/min) remained stable over the entire time (Supplementary Fig. 1 – for all supplementary material see www.cellphysiolbiochem.com). In experimental mice, after initial perfusion at 50 mmHg, the left kidney was removed and served as a control in all experiments. Next, a constant pressure of 300 mmHg or a pressure significantly higher than 300 mmHg (>>300 mmHg; supramaximal filtration pressure of about 450 – 500 mmHg) were applied to the remaining right kidney for 5 min. (Fig. 1B).
In the isolated perfused kidneys, podocytes were identified using nuclear labeling with eGFP-histone in our transgenic mice expressing eGFP under the podocin promoter (eGFP:Pod-rtTA mice). Podocyte numbers were quantified using a combination of this in vivo metabolic labeling and 3D morphometry (Fig. 1C).

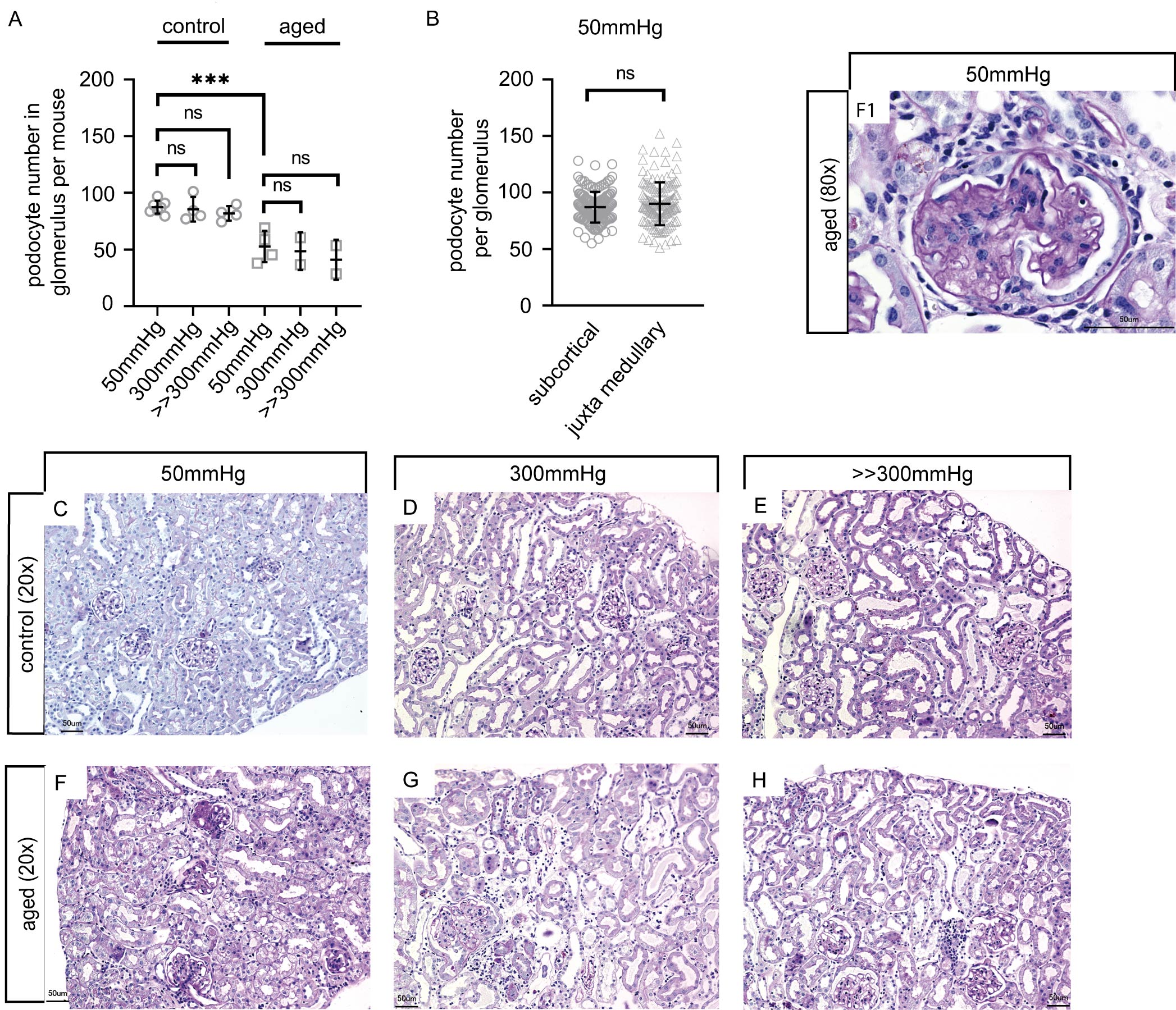

Podocyte loss in healthy and aged mice
Healthy mice contained 87.46 ± 5.66 (SD) podocytes per glomerulus at baseline (i.e. at physiological perfusion pressure of 50 mmHg) (Fig. 2A). Juxtamedullary glomeruli were larger than those in the outer cortex (Supplementary Fig. 2), but this was not associated with higher podocyte numbers (87.0± 23.65 vs. 90.1 ± 18.49, respectively, Fib 2B). No differences in the number of podocytes related to sex were observed (see below).
In young mice, there was no significant loss of podocytes at high (300 mmHg) or maximal (>>300 mmHg) perfusion pressures (85.62 ± 10.83 and 81.98 ± 6.45 podocytes per glomerulus, respectively) (Fig. 1A). On PAS sections, mild histological changes were observed particularly in aged mice (Fig. 2A), which were independent of perfusion pressures. In addition, tubular dilatation and interstitial edema were apparent as a result of perfusion.
In humans, older age (53 ± 10 years) has been associated with absolute and relative podocyte depletion [20]. Compared to young mice, our mice aged 72 weeks contained significantly lower numbers of podocytes per glomerulus at baseline (52.81 ± 13.8 SD), indicating that about 40% of the podocytes had been lost. Perfusion at high or maximal pressures resulted in only a very mild reduction of podocyte numbers (48.65 ± 16.8 SD and 41.06 ± 17.7 SD, respectively). Because of the precision of the counting method (absolute podocyte numbers in 40 glomeruli per mouse) [21], the loss of podocytes of 7.9% and 22% after perfusion with 300 or >>300 mmHg respectively compared to baseline suggests that this minor increase in podocyte loss with higher pressure is not a coincidental finding. On PAS sections, mild glomerular changes were observed in aged mice at baseline (mesangial expansion and occasional sclerosis, Fig. 2F). After perfusion tubular dilatation and some interstitial edema were observed (Fig. 2G-H).
Podocyte loss after acute injury

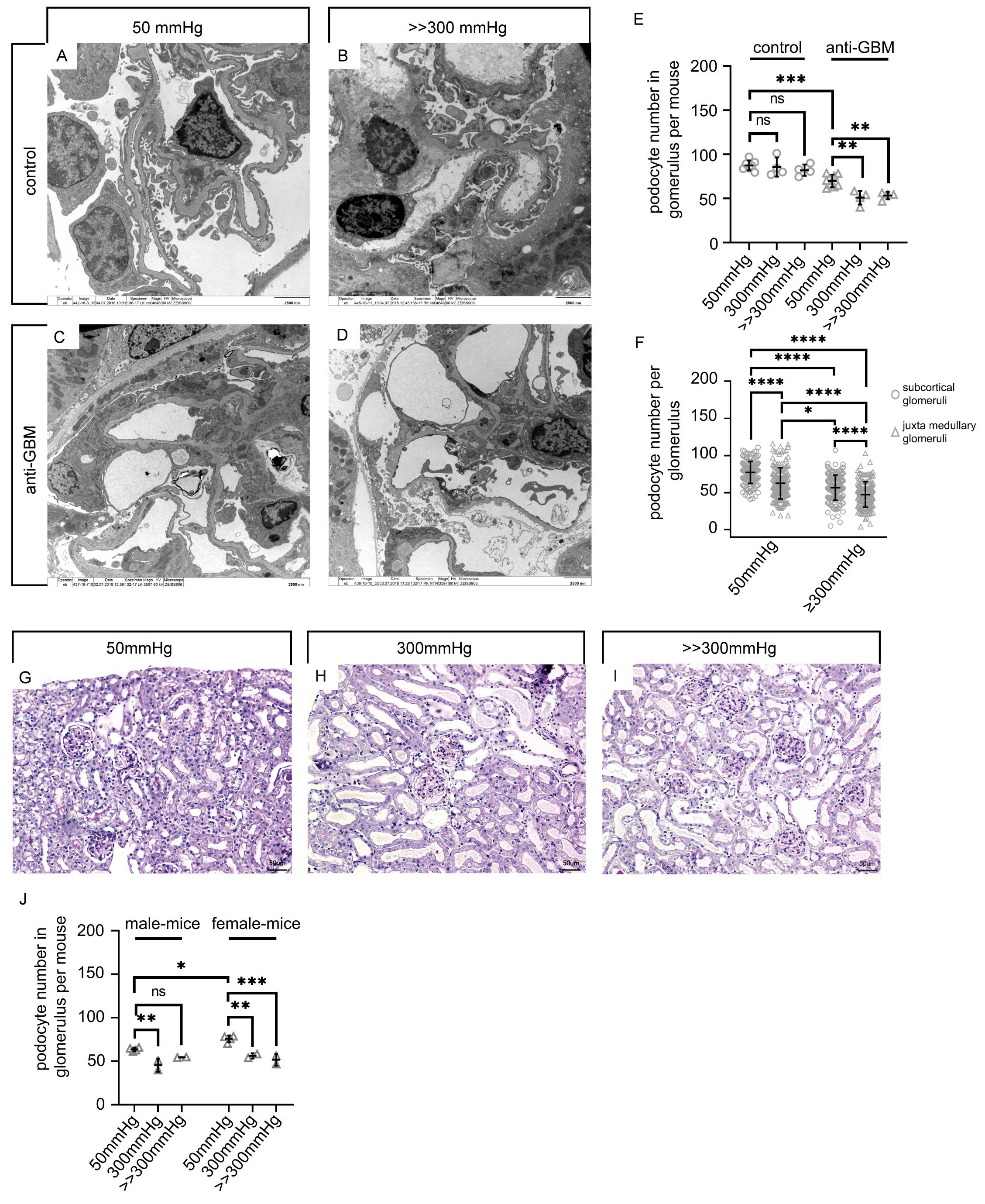

Anti-GBM serum was applied to young healthy mice to induce significant and specific injury to podocytes. At the very early time-point (i.e. 3 days) after induction of anti-GBM glomerulonephritis, generalized foot process effacement was observed in all glomeruli by transmission electron microscopy (Fig. 3A-D). In isolated perfused kidneys obtained from these mice, at baseline (i.e. perfusion with 50mmHg) podocyte numbers per glomerulus were reduced by 20% compared to controls (69.76 ± 7.07 vs 87.46 ± 5.66, respectively) (Fig. 3E). Perfusion with higher pressures (300 and >>300 mmHg) resulted in significant further reductions of podocyte numbers per glomerulus (50.84 ± 7.82 and 53.18 ± 4.26, respectively), i.e. 27% and 24% additional reduction (Fig. 3E). When analyzing individual glomeruli, the anti-GBM mice, perfusion with >>300 mmHg caused more than 80% podocyte loss in a minority of the glomeruli (Fig. 3E). This is in line with the focal nature of the anti-GBM disease model. Within juxtamedullary glomeruli, podocyte loss was more pronounced compared to subcortical glomeruli (56.66 ± 16.9 and 47.35 ± 17.07, respectively) (Fig. 3F).
By transmission electron microscopy (TEM), specific changes were observed after high perfusion pressures, in particular focal podocyte detachment from the GBM and denuded basement membrane (Fig. 3D). Cellular debris was present within the capillaries as well as within Bowman’s space (>>300 mmHg); the endothelium did not show significant changes. PAS staining identified tubular dilation. Three days after the injection of anti-GBM serum, no crescentic lesions had developed yet (Fig. 3G-I).
Males showed a higher degree of podocyte loss compared to females (63.71 ± 2.11 vs 75.81 ± 3.83 podocytes per glomerulus), which is consistent with the observation that male mice are more susceptible to anti-GBM antiserum and form more cellular crescents in the course of the disease (Fig. 3J). However, the additional loss of podocytes after high perfusion pressures was similar in males and females (Fig. 3J).

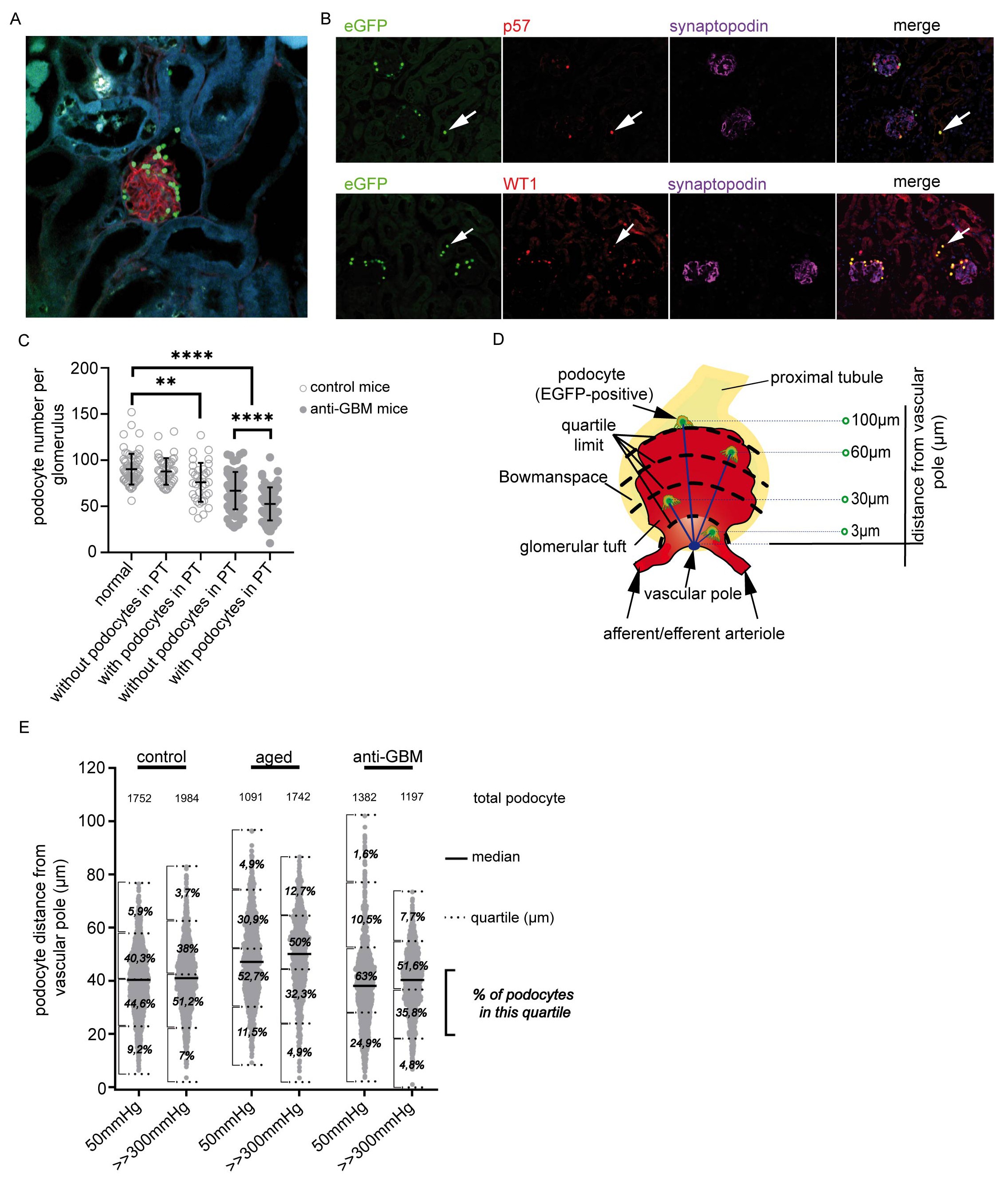

Tracing the lost podocytes in the tubules
eGFP+ podocytes were regularly observed within the lumen of the proximal tubules where they appeared to adhere to the brush-border of proximal tubule cells (Fig. 4A). These podocytes were not washed away in hyperperfused kidneys, instead they adhered rather tightly to the brush border to withstand the extraordinary flow of the primary urine at very high perfusion pressures. To confirm their identity, podocytes were co-stained with podocyte-specific markers (i.e., p57, synaptopodin and WT-1) in addition to the genetic lineage tracing marker nuclear eGFP (Fig. 4B). Podocyte numbers were significantly lower in those glomeruli with adhering podocytes in the associated proximal tubule, and the presence of podocytes in tubules inversely correlated with the number of podocytes per glomerulus (Fig. 4C).
Preferential loss of podocytes in perihilar location
Finally, we investigated whether podocyte loss driven by an acute increase in perfusion pressures might occur in preferential locations of the glomerulus (i.e. at the vascular pole vs. the tubular pole of the glomerular tuft). To analyze the spatial distribution of podocyte detachment, the vascular pole was marked in each glomerulus (acquired in 3D) based on the lectin signal and the distance of each podocyte from the vascular pole was determined semi-automatically. The individual distances from the vascular pole were separated into quartiles (Fig. 4E). As depicted in Fig. 4E, the majority of podocytes clustered in the 2 middle quartiles (i.e. quartile 2 and 3). Less than 12 % of the podocytes localized to either in the first, i.e. vascular pole, or the fourth quartile, i.e. most distant from the vascular pole. Upon perfusion with pressures >> 300 mmHg, no significant changes in the spacial distribution of podocytes were observed in young and healthy mice. In aged mice, podocyte distances from the vascular pole were generally increased, most likely reflecting glomerular hypertrophy, whereas hyperperfusion resulted in a preferential detachment of podocytes close to the vascular pole (1st quartile reduced from 11.5 to 4.9% in aged mice, Fig. 4E). Similarly, a preferential detachment of podocytes close to the vascular pole was observed in effaced podocytes (anti-GBM, 1st quartile reduced from 25 to 5%).
Discussion
In this study, we examined the acute effects of elevated filtration pressure and filtration flow on podocyte loss in the isolated perfused murine kidney, using the currently most accurate method to determine podocyte numbers.
The first major finding of our study was that healthy podocytes are not susceptible to acute shear stress in vivo, as suggested previously by cell culture studies [11]. To our surprise, not even extreme supraphysiological pressures (more than 450 mmHg) induced significant podocyte detachment. Rather, transmission electron microscopy revealed that all three layers of the filtration barrier remained relatively well preserved. Older mice showed reduced podocyte numbers (as reported previously) and this was associated with only very limited increased susceptibility to high perfusion pressures.
The second major finding was that prior podocyte injury rendered podocytes susceptible to detachment at high perfusion pressures. Anti-GBM mice showed global foot processes effacement three days after injection of the anti-GBM antiserum and significant numbers detached at high perfusion pressures. In aged mice, we hypothesize that podocyte physiology is relatively well preserved, rendering them less susceptible to detachment.
By applying a semi-automated counting approach, each glomerulus was analyzed separately (total of 1200 glomeruli analyzed). We confirmed that juxtamedullary glomeruli have a higher volume than subcortical glomeruli. Interestingly, podocyte numbers were the same, showing that podocyte density is reduced in juxtamedullary glomeruli. In addition, juxtamedullary glomeruli were also more vulnerable to increased filtration pressures compared to subcortical glomeruli. These findings could explain in part, why FSGS lesion can be observed at a higher frequency in such larger glomeruli [22, 23].
A limitation of this study is the short observation period, as no conclusions can be made regarding the long-term adaptation of podocytes to increased filtration pressures. It has been proposed that the first response of podocytes exposed to shear stress is to undergo protective structural changes [8, 24]. These changes include the loss of filtration slits (i.e. FPE) and replacement of slit-diaphragms by occluding or tight junctions. Occluding junctions have been previously described in several glomerular disease models [25-28]. However, in our study we observed that podocytes with FPE were more susceptible to higher perfusion pressures. Hence, our results showed that these adaptive changes were not enough to protect against detachment or potentially even the opposite, that they render podocytes more susceptible to detachment.
Next, it may be argued that the isolated perfused kidney is not a physiological system and that the pressures applied were much higher than under in vivo conditions. To our knowledge, no other model using an intact viable kidney exists that would allow investigating the effects of increased perfusion pressures directly. By application of vasodilators before and during perfusion, maximal dilatation of pre-glomerular vessels as induced to allow unrestricted flow (hyperfiltration) and maximal transmission of increased perfusion pressures into the glomerulus.
In the present study, the acute effects of higher perfusion pressures were studied. Long term effects of pathological hyperperfusion could be more deleterious, leading to even more podocyte loss. However, our study suggests, that this chronic loss of podocytes is not driven by the shear force of filtration flow per se but much rather by the (mal-)adaptive changes in podocytes which decrease their adherence to the GBM. Patients with glomerular diseases benefit from antihypertensive treatment by preventing (mal-)adaptive structural changes of podocytes.
Conclusion
This work provides the first in vivo evidence that healthy podocytes are extraordinarily firmly attached to the GBM in healthy mouse kidneys and can resist even very high perfusion pressures. Aging or even more pronounced acute podocyte injury with global effacement, renders podocytes susceptible to detachment at increased perfusion pressures.
Acknowledgements
This work was supported by the Core Facility” Two-Photon Imaging”, a Core Facility of the Interdisciplinary Center for Clinical Research (IZKF) Aachen within the Faculty of Medicine at RWTH Aachen University.
Author Contributions
TS performed the experiments and analyzed the data. All authors revised the manuscript before submission. VGP, VS, KL, TS, MB, ES and MJM assisted with experiments and data analyses. VGP, JF, PB, RH, MV, ES and MJM provided experimental resources and expertise. ES and MJM were responsible for the experimental design, writing of the manuscript, and study supervision.
Statement of Ethics
Disclosure Statement
The authors declare that they have no conflicting interests.
References
|
1 Hostetter
TH, Olson JL, Rennke HG, Venkatachalam MA, Brenner BM: Hyperfiltration in
remnant nephrons: a potentially adverse response to renal ablation. Am J
Physiol 1981;241:F85-93. |
|
|
|
|
|
2 Brenner BM, Lawler EV, Mackenzie HS: The hyperfiltration
theory: a paradigm shift in nephrology. Kidney Int 1996;49:1774-1777. |
|
|
|
|
|
3 Kriz W, Shirato I, Nagata M, LeHir M, Lemley KV: The
podocyte's response to stress: the enigma of foot process effacement. Am J
Physiol Renal Physiol 2013;304:F333-347. |
|
|
|
|
|
4 Vogelmann SU, Nelson WJ, Myers BD, Lemley KV: Urinary
excretion of viable podocytes in health and renal disease. Am J Physiol Renal
Physiol 2003;285:F40-48. |
|
|
|
|
|
5 Fukuda A, Wickman LT, Venkatareddy MP, Sato Y, Chowdhury
MA, Wang SQ, Shedden KA, Dysko RC, Wiggins JE, Wiggins RC: Angiotensin
II-dependent persistent podocyte loss from destabilized glomeruli causes
progression of end stage kidney disease. Kidney Int 2012;81:40-55. |
|
|
|
|
|
6 Wickman L, Afshinnia F, Wang SQ, Yang Y, Wang F, Chowdhury
M, Graham D, Hawkins J, Nishizono R, Tanzer M, Wiggins J, Escobar GA, Rovin
B, Song P, Gipson D, Kershaw D, Wiggins RC: Urine podocyte mRNAs,
proteinuria, and progression in human glomerular diseases. J Am Soc Nephrol
2013;24:2081-2095. |
|
|
|
|
|
7 Kriz W, Lemley KV: Mechanical challenges to the glomerular
filtration barrier: adaptations and pathway to sclerosis. Pediatr Nephrol
2017;32:405-417. |
|
|
|
|
|
8 Kriz W, Lemley KV: A potential role for mechanical forces
in the detachment of podocytes and the progression of CKD. J Am Soc Nephrol
2015;26:258-269. |
|
|
|
|
|
9 Endlich K, Kliewe F, Endlich N: Stressed
podocytes-mechanical forces, sensors, signaling and response. Pflugers Arch
2017;469:937-949. |
|
|
|
|
|
10 Janmey PA, Miller RT: Mechanisms of mechanical signaling
in development and disease. J Cell Sci 2011;124:9-18. |
|
|
|
|
|
11 Friedrich C, Endlich N, Kriz W, Endlich K: Podocytes are
sensitive to fluid shear stress in vitro. Am J Physiol Renal Physiol
2006;291:F856-865. |
|
|
|
|
|
12 Endlich N, Kress KR, Reiser J, Uttenweiler D, Kriz W, Mundel P, Endlich K: Podocytes respond to mechanical stress in vitro. J Am Soc Nephrol 2001;12:413-422. |
|
|
|
|
|
13 Shigehara T, Zaragoza C, Kitiyakara C, Takahashi H, Lu H, Moeller M, Holzman LB, Kopp JB: Inducible podocyte-specific gene expression in transgenic mice. J Am Soc Nephrol 2003;14:1998-2003. |
|
|
|
|
|
14 Smeets B, Uhlig S, Fuss A, Mooren F, Wetzels JF, Floege
J, Moeller MJ: Tracing the origin of glomerular extracapillary lesions from
parietal epithelial cells. J Am Soc Nephrol 2009;20:2604-2615. |
|
|
|
|
|
15 Nobiling R, Munter K, Buhrle CP, Hackenthal E: Influence
of Pulsatile Perfusion Upon Renin Release from the Isolated Perfused
Rat-Kidney. Pflug Arch Eur J Phy 1990;415:713-717. |
|
|
|
|
|
16 Puelles VG, Fleck D, Ortz L, Papadouri S, Strieder T,
Bohner AMC, van der Wolde JW, Vogt M, Saritas T, Kuppe C, Fuss A, Menzel S,
Klinkhammer BM, Muller-Newen G, Heymann F, Decker L, Braun F, Kretz O, Huber
TB, Susaki EA, et al.: Novel 3D analysis using optical tissue clearing
documents the evolution of murine rapidly progressive glomerulonephritis.
Kidney Int 2019;96:505-516. |
|
|
|
|
|
17 Puelles VG, van der Wolde JW, Schulze KE, Short KM, Wong
MN, Bensley JG, Cullen-McEwen LA, Caruana G, Hokke SN, Li J, Firth SD, Harper
IS, Nikolic-Paterson DJ, Bertram JF: Validation of a Three-Dimensional Method
for Counting and Sizing Podocytes in Whole Glomeruli. J Am Soc Nephrol
2016;27:3093-3104. |
|
|
|
|
|
18 Kuppe C, Grone HJ, Ostendorf T, van Kuppevelt TH, Boor P,
Floege J, Smeets B, Moeller MJ: Common histological patterns in glomerular
epithelial cells in secondary focal segmental glomerulosclerosis. Kidney Int
2015;88:990-998. |
|
|
|
|
|
19 Kuppe C, van Roeyen C, Leuchtle K, Kabgani N, Vogt M, Van
Zandvoort M, Smeets B, Floege J, Grone HJ, Moeller MJ: Investigations of
Glucocorticoid Action in GN. J Am Soc Nephrol 2017;28:1408-1420. |
|
|
|
|
|
20 Puelles VG, Cullen-McEwen LA, Taylor GE, Li JH, Hughson
MD, Kerr PG, Hoy WE, Bertram JF: Human podocyte depletion in association with
older age and hypertension. Am J Physiol Renal Physiol 2016;310:F656-F668. |
|
|
|
|
|
21 Puelles VG, Fleck D, Ortz L, Papadouri S, Strieder T,
Bohner AMC, van der Wolde JW, Vogt M, Saritas T, Kuppe C, Fuss A, Menzel S,
Klinkhammer BM, Muller-Newen G, Heymann F, Decker L, Braun F, Kretz O, Huber
TB, Susaki EA, et al.: Novel 3D analysis using optical tissue clearing
documents the evolution of murine rapidly progressive glomerulonephritis.
Kidney Int 2019;96:505-516. |
|
|
|
|
|
22 Newbold KM, Sandison A, Howie AJ: Comparison of size of
juxtamedullary and outer cortical glomeruli in normal adult kidney. Virchows
Arch A Pathol Anat Histopathol 1992;420:127-129. |
|
|
|
|
|
23 Skov K, Nyengaard JR, Patwardan A, Mulvany MJ: Large
juxtamedullary glomeruli and afferent arterioles in healthy primates. Kidney
Int 1999;55:1462-1469. |
|
|
|
|
|
24 Kriz W, Hahnel B, Hosser H, Rosener S, Waldherr R:
Structural analysis of how podocytes detach from the glomerular basement
membrane under hypertrophic stress. Front Endocrinol 2014;5:207. |
|
|
|
|
|
25 Fukasawa H, Bornheimer S, Kudlicka K, Farquhar MG: Slit
diaphragms contain tight junction proteins. J Am Soc Nephrol
2009;20:1491-1503. |
|
|
|
|
|
26 Shono A, Tsukaguchi H, Yaoita E, Nameta M, Kurihara H,
Qin XS, Yamamoto T, Doi T: Podocin participates in the assembly of tight
junctions between foot processes in nephrotic podocytes. J Am Soc Nephrol
2007;18:2525-2533. |
|
|
|
|
|
27 Kurihara H, Anderson JM, Kerjaschki D, Farquhar MG: The altered glomerular filtration slits seen in puromycin aminonucleoside nephrosis and protamine sulfate-treated rats contain the tight junction protein ZO-1. Am J Pathol 1992;141:805-816. |
|
|
|
|
|
28 Venkatachalam MA, Karnovsky MJ, Cotran RS: Glomerular
permeability. Ultrastructural studies in experimental nephrosis using
horseradish peroxidase as a tracer. J Exp Med 1969;130:381-399. |
|
